1825013 Series

Catalog

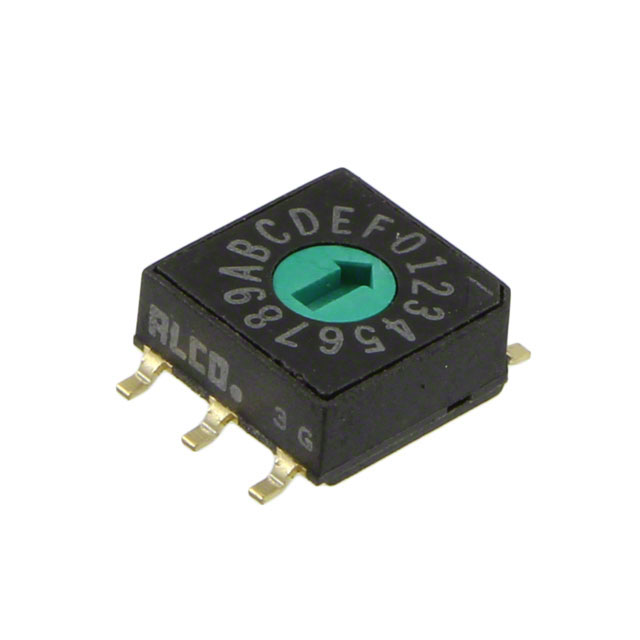

SWITCH ROTARY DIP BCD 0.4VA 20V

Part	Actuator Level	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Features	Mechanical Life	Actuator Type	Voltage Rating	Circuit	Height Above Board	Height Above Board	Contact Material	Electrical Life	Mounting Type	Contact Finish	Number of Positions	Body Material	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Height Above Board [z]	Height Above Board [z]
TE Connectivity Raychem Cable Protection 1825013-1	Flush Recessed	PC Pin	-30 ░C	85 °C	7 mm	0.276 in	Process Sealed	20000 Cycles	Rotary for Tool	20 VAC/DC	BCD	0.13 in	3.3 mm	Beryllium Copper	10000 Cycles	Through Hole	Gold	10	Polyphenylene Sulfide (PPS)	0.1 in	Full	2.54 mm
TE Connectivity Raychem Cable Protection 1825013-6	Flush Recessed	Gull Wing	-30 ░C	85 °C	7 mm	0.276 in	Process Sealed	20000 Cycles	Rotary for Tool	20 VAC/DC	BCD Complement	0.122 in	3.1 mm	Beryllium Copper	10000 Cycles	Surface Mount	Gold	10	Polyphenylene Sulfide (PPS)	0.1 in	Full	2.54 mm
TE Connectivity Raychem Cable Protection 2-1825013-0	Flush Recessed	Gull Wing	-30 ░C	85 °C	7 mm	0.276 in	Process Sealed	20000 Cycles	Rotary for Tool	20 VAC/DC	Hexadecimal	0.122 in	3.1 mm	Beryllium Copper	10000 Cycles	Surface Mount	Gold		Polyphenylene Sulfide (PPS)	0.1 in	Full	2.54 mm	16
TE Connectivity Raychem Cable Protection 1-1825013-7	Flush Recessed	PC Pin	-30 ░C	85 °C	7 mm	0.276 in	Process Sealed	20000 Cycles	Rotary for Tool	20 VAC/DC	Hexadecimal			Beryllium Copper	10000 Cycles	Through Hole Right Angle	Gold		Polyphenylene Sulfide (PPS)	0.1 in	Full	2.54 mm	16	7.5 mm	0.295 in
