9GT0924 Series

Catalog

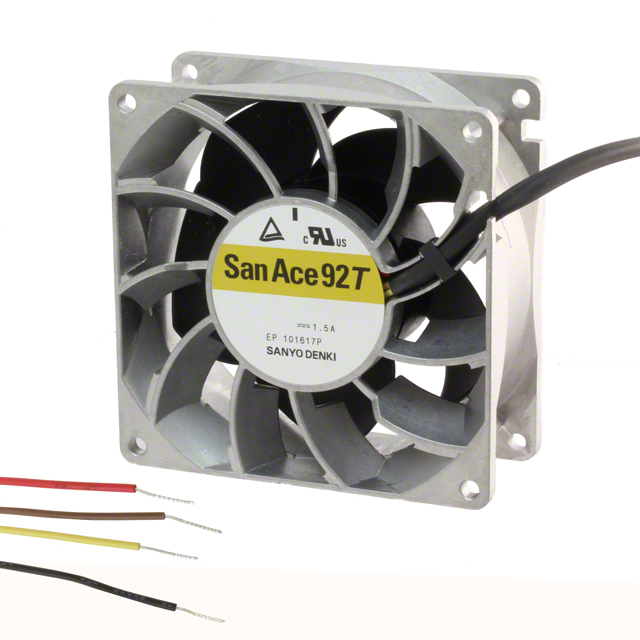

FAN AXIAL 92X38MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Weight	Weight	Bearing Type	Fan Type	Features	Power (Watts)	RPM	Air Flow	Air Flow	Voltage - Rated	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Noise	Static Pressure	Static Pressure	Termination	Size / Dimension [y]	Size / Dimension [x]
Sanyo Denki America Inc. 9GT0924P1M001	Aluminum	Plastic	40000 Hrs	750 mA	269.89 g	0.595 lb	Ball	Tubeaxial	PWM Control Speed Sensor (Tach)	18 W	8100 RPM	116.5 CFM	3.26 m³/min	24 VDC	CSA TUV UL	-40 C	85 °C	38 mm	58 dB(A)	313.9 Pa	1.26 in H2O	4 Wire Leads	92 mm	92 mm
Sanyo Denki America Inc. 9GT0924J4002	Aluminum	Plastic	40000 Hrs	0.21 A	150.14 g	0.331 lb	Ball	Tubeaxial		5.04 W	5000 RPM	77.7 CFM	2.18 mł/min	24 VDC	CSA TUV UL	-40 C	85 °C	25 mm	44 dB(A)	104.6 Pa	0.42 in H2O	2 Wire Leads	92 mm	92 mm
Sanyo Denki America Inc. 9GT0924J4001	Aluminum	Plastic	40000 Hrs	0.21 A	150.14 g	0.331 lb	Ball	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	5.04 W	5000 RPM	77.7 CFM	2.18 mł/min	24 VDC	CSA TUV UL	-40 C	85 °C	25 mm	44 dB(A)	104.6 Pa	0.42 in H2O	3 Wire Leads	92 mm	92 mm
