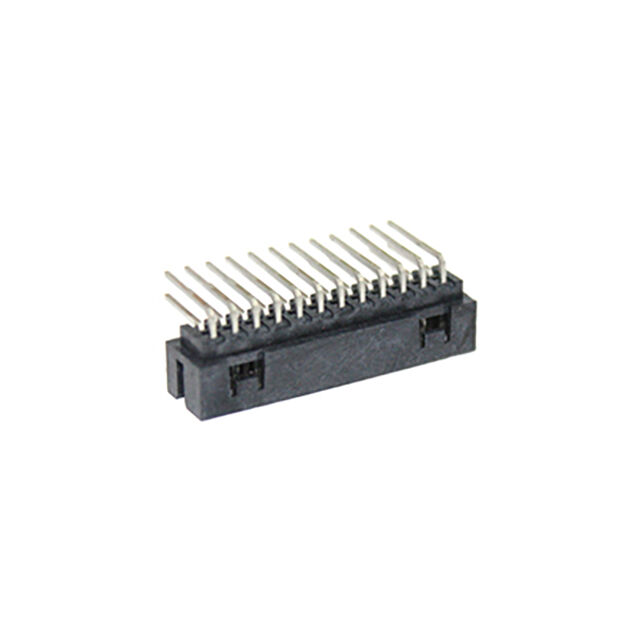

151119 Series

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Right-Angle, Through Hole, 0.05µm Gold (Au) Plating, without Peg, 4.60mm PC Tail Length, without Pick and Place Tape, 14 Circuits, Glow-Wire Capable, Tube

Manufacturer: Molex

Catalog

2.00mm Pitch, Milli-Grid PCB Header, Dual Row, Right-Angle, Through Hole, 0.05µm Gold (Au) Plating, without Peg, 4.60mm PC Tail Length, without Pick and Place Tape, 14 Circuits, Glow-Wire Capable, Tube

...

Part	Voltage Rating	Number of Rows	Contact Shape	Contact Finish - Mating	Contact Type	Features	Contact Material	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Number of Positions	Termination	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Shrouding	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
Molex 1511194222

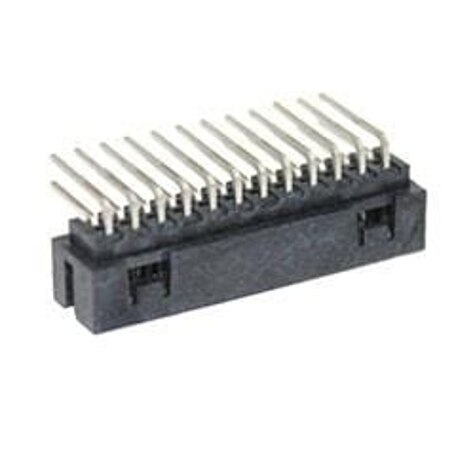

Molex 1511195230
Molex 1511194330	125 VAC	2	Square	Gold	Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	29.5 Áin	0.75 Ám	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	30	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C	3.6 mm	0.142 in	Header
Molex 1511195216	125 VDC	2	Square	Gold	Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	15 µin	0.38 µm	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle		Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C			Header	0.181 in	4.6 mm	16
Molex 1511194006	125 VDC	2	Square		Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	78.7 µin	2 µm	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	6	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C	3.6 mm	0.142 in	Header
Molex 1511193712	125 VDC	2	Square	Gold	Male Pin	Glow Wire Compliant Pick and Place	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	29.5 Áin	0.75 Ám	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	12	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C	2.6 mm	0.102 in	Header
Molex 1511193234	125 VAC	2	Square	Gold	Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	15 µin	0.38 µm	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	34	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C	2.6 mm	0.102 in	Header
Molex 1511195034	125 VDC	2	Square		Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	78.7 µin	2 µm	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	34	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C			Header	0.181 in	4.6 mm
Molex 1511193208	125 VAC	2	Square	Gold	Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	15 µin	0.38 µm	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	8	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C	2.6 mm	0.102 in	Header
Molex 1511195122	125 VDC	2	Square	Gold	Male Pin	Glow Wire Compliant	Copper Alloy	Tin	0.079 in	2 mm	Black	Board to Board Cable	1.97 Áin	0.05 Ám	All	2 çm	78.7 çin	Detent Lock	0.079 in	2 mm	Through Hole Right Angle	22 positions	Solder	2 A	0.142 in	3.6 mm	Shrouded - 4 Wall	UL94 V-0	105 ░C	-55 °C			Header	0.181 in	4.6 mm
