M20-786 Series
Manufacturer: Harwin Inc.
Beta
⌘K
16 POS. FEMALE SIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
| Part | Contact Material | Applications | Contact Shape | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Number of Rows | Contact Type | Connector Type | Fastening Type | Mounting Type | Pitch - Mating | Pitch - Mating | Mated Stacking Heights | Contact Finish - Post | Number of Positions | Number of Positions Loaded | Material Flammability Rating | Contact Finish - Mating | Current Rating (Amps) | Insulation Height [z] | Insulation Height [z] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Phosphor Bronze | General Purpose | Square | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Black | 1 | Female Socket | Receptacle Bottom or Top Entry | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | 10.04 mm 11.63 mm | Tin | 16 | All | UL94 V-0 | Gold | 3 A | 7.5 mm | 0.295 in | Solder |

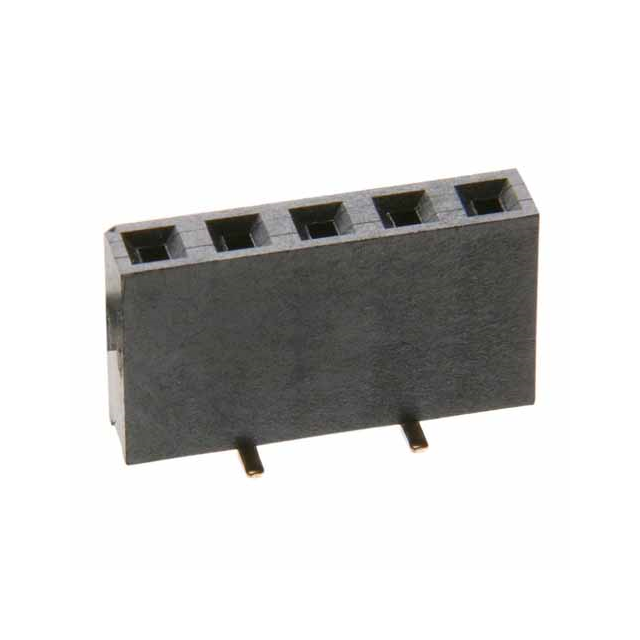

Harwin Inc. | Phosphor Bronze | General Purpose | Square | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Black | 1 | Female Socket | Receptacle Bottom or Top Entry | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | 10.04 mm 11.63 mm | Tin | 5 | All | UL94 V-0 | Gold | 3 A | 7.5 mm | 0.295 in | Solder |
Harwin Inc. | Phosphor Bronze | General Purpose | Square | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Black | 1 | Female Socket | Receptacle Bottom or Top Entry | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | 10.04 mm 11.63 mm | Tin | All | UL94 V-0 | 3 A | 7.5 mm | 0.295 in | Solder | ||
Harwin Inc. | Phosphor Bronze | General Purpose | Square | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Black | 1 | Female Socket | Receptacle Bottom or Top Entry | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | 10.04 mm 11.63 mm | Tin | 5 | All | UL94 V-0 | 3 A | 7.5 mm | 0.295 in | Solder | |
 Harwin Inc. | Phosphor Bronze | General Purpose | Square | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Black | 1 | Female Socket | Receptacle Bottom or Top Entry | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | 10.04 mm 11.63 mm | Tin | 15 | All | UL94 V-0 | 3 A | 7.5 mm | 0.295 in | Solder | |
 Harwin Inc. | Phosphor Bronze | General Purpose | Square | Nylon 6T Polyamide (PA6T) | -40 C | 105 ░C | Black | 1 | Female Socket | Receptacle Bottom or Top Entry | Push-Pull | Surface Mount | 0.1 " | 2.54 mm | 10.04 mm 11.63 mm | Tin | 20 | All | UL94 V-0 | Gold | 3 A | 7.5 mm | 0.295 in | Solder |
