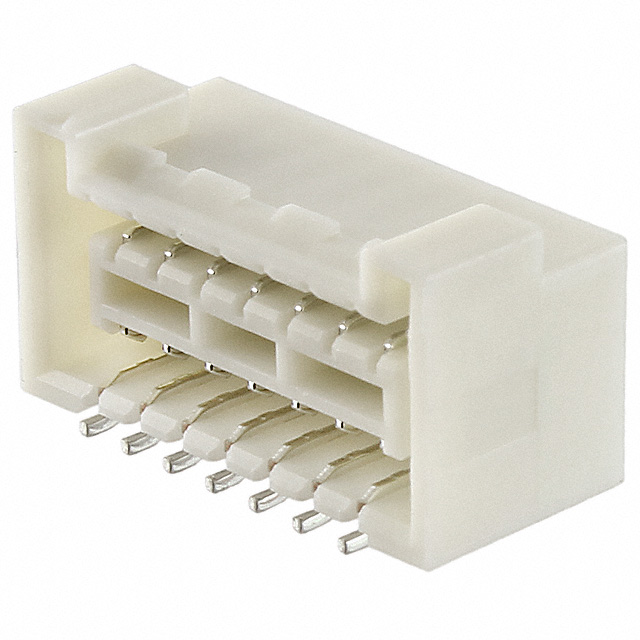

SM14B-ZP Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 14POS 1.5MM
| Part | Insulation Height | Insulation Height | Contact Material | Contact Shape | Contact Finish - Post | Termination | Number of Positions | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Material Flammability Rating | Insulation Color | Fastening Type | Voltage Rating | Number of Rows [custom] | Connector Type | Current Rating (Amps) | Number of Positions Loaded | Mounting Type | Insulation Material | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 7.85 mm | 0.309 in | Copper Alloy | Rectangular | Tin | Solder | 14 | Outer Shroud Contact | 85 °C | -25 °C | Shrouded - 4 Wall | UL94 V-0 | Natural | Locking Ramp | 100 V | 2 | Header | 2 A | All | Right Angle Surface Mount | Nylon Polyamide (PA) | Board to Cable/Wire |
