Pts8200 Series Series

Microminiature SMT Top Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Microminiature SMT Top Actuated

Part	Mounting Type	Switch Travel	Termination Style	Actuator Orientation	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mechanical Life	Outline [y]	Outline [x]	Contact Rating @ Voltage	Operating Force	Switch Function	Actuator Height off PCB, Vertical [z]	Circuit	Features

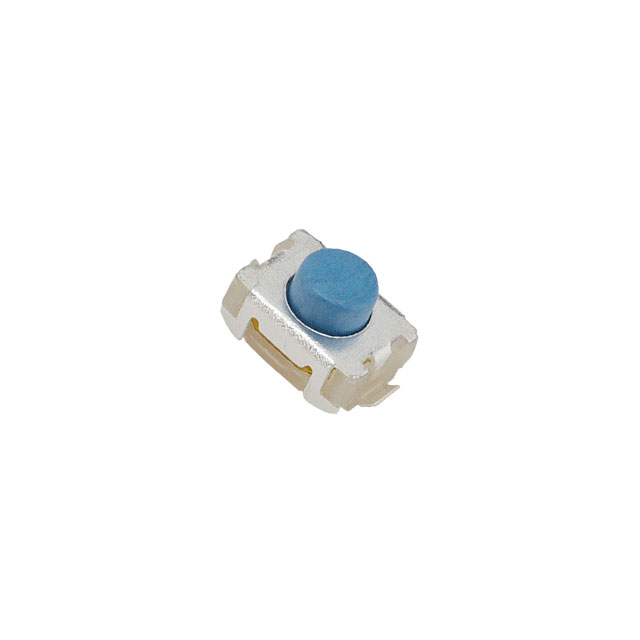

Littelfuse/Commercial Vehicle Products PTS820 J25K SMTR LFS	Surface Mount	0.2 mm	J Lead	Top Actuated	Non-Illuminated	85 °C	-40 °C	Standard	100000 Cycles	2.9 mm	3.9 mm	0.05 A 12 VDC	0.25 kgf	Off-Mom	2.5 mm	SPST-NO
Littelfuse/Commercial Vehicle Products PTS820 J15M SMTR LFS	Surface Mount	0.2 mm	J Lead	Top Actuated	Non-Illuminated	85 °C	-40 °C	Standard	200000 Cycles	2.9 mm	3.9 mm	0.05 A 12 VDC		Off-Mom	1.5 mm	SPST-NO
Littelfuse/Commercial Vehicle Products PTS820 J25MP SMTR LFS	Surface Mount	0.2 mm	J Lead	Top Actuated	Non-Illuminated	85 °C	-40 °C	Standard	200000 Cycles	2.9 mm	3.9 mm	0.05 A 12 VDC		Off-Mom	2.5 mm	SPST-NO	Board Guide
Littelfuse/Commercial Vehicle Products PTS820 J15MP SMTR LFS	Surface Mount	0.2 mm	J Lead	Top Actuated	Non-Illuminated	85 °C	-40 °C	Standard	200000 Cycles	2.9 mm	3.9 mm	0.05 A 12 VDC		Off-Mom	1.5 mm	SPST-NO	Board Guide
Littelfuse/Commercial Vehicle Products PTS820J25KPSMTR LFS	Surface Mount	0.2 mm	J Lead	Top Actuated	Non-Illuminated	85 °C	-40 °C	Standard	100000 Cycles	2.9 mm	3.9 mm	0.05 A 12 VDC	0.25 kgf	Off-Mom	2.5 mm	SPST-NO	Board Guide

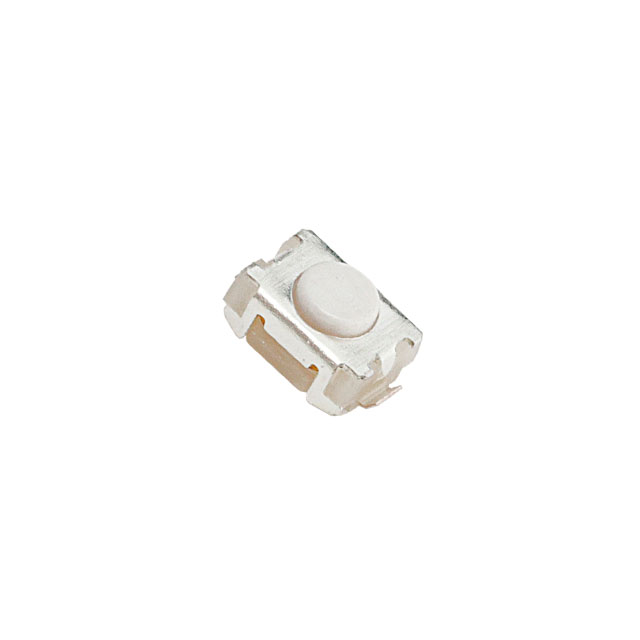

Littelfuse/Commercial Vehicle Products PTS820 J20M SMTR LFS	Surface Mount	0.2 mm	J Lead	Top Actuated	Non-Illuminated	85 °C	-40 °C	Standard	200000 Cycles	2.9 mm	3.9 mm	0.05 A 12 VDC		Off-Mom	2 mm	SPST-NO

Catalog

Microminiature SMT Top Actuated

Key Features

• Three different heights

• 3.9 x 2.9 mm footprint

• High number of cycles

Description

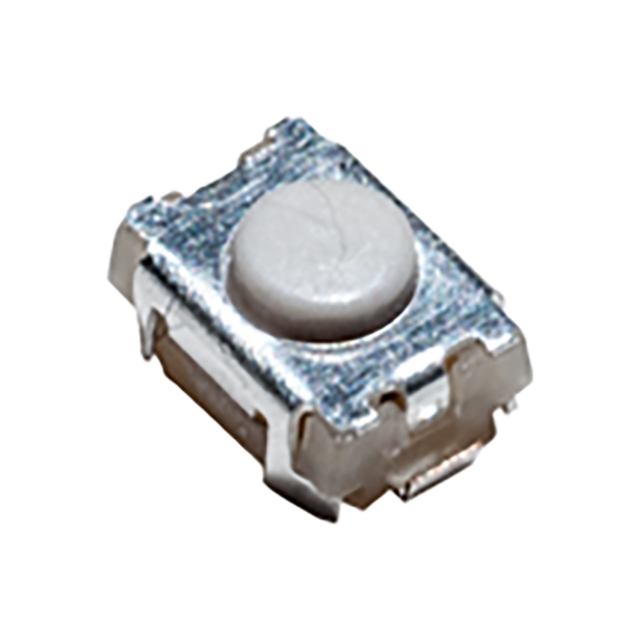

The PTS820 series of microminiature SMT top actuated switches from C&K have a 3.9 x 2.9mm footprint and feature the option for three different heights. When combined with a reputation for being long-lasting and reliable, these switches are perfect for any keyless entry, remote control or control panel application a designer can dream up.
