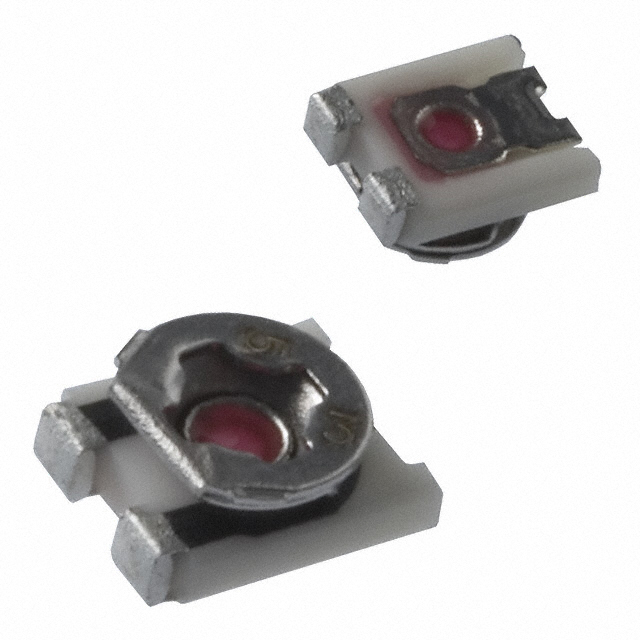

3302W Series

Catalog

TRIMMER 1K OHM 0.15W J LEAD TOP

Part	Resistive Material	Power (Watts)	Termination Style	Adjustment Type	Number of Turns	Resistance	Temperature Coefficient	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Mounting Type
Bourns Inc. 3302W-3-102E	Cermet	150 mW	J Lead	Top Adjustment	1	1000 Ohms	250 ppm/°C	25 %	0.087 in 2.2 mm	0.108 " 2.75 mm	Surface Mount
Bourns Inc. 3302W-3-503E	Cermet	150 mW	J Lead	Top Adjustment	1	50000 Ohms	250 ppm/°C	25 %	0.087 in 2.2 mm	0.108 " 2.75 mm	Surface Mount
Bourns Inc. 3302W-3-104E	Cermet	150 mW	J Lead	Top Adjustment	1	100 kOhms	250 ppm/°C	25 %	0.087 in 2.2 mm	0.108 " 2.75 mm	Surface Mount
Bourns Inc. 3302W-3-105E	Cermet	150 mW	J Lead	Top Adjustment	1	1 MOhms	250 ppm/°C	25 %	0.087 in 2.2 mm	0.108 " 2.75 mm	Surface Mount
Bourns Inc. 3302W-3-502E	Cermet	150 mW	J Lead	Top Adjustment	1	5 kOhms	250 ppm/°C	25 %	0.087 in 2.2 mm	0.108 " 2.75 mm	Surface Mount
