Miniature, 1W, 3kVDC Isolated DC/DC Converters
Key Features
• 3-kVDC Isolation (operational): 1-second testContinuous voltage applied across isolation barrier: 60 VDC / 42.5 VACUL60950 certified productIndustry standard footprintJEDEC 7-pin SIP packageInput voltage: 5 V ±10%Output voltage: ±5 V, ±12 V, or ±15 VSupports series operation for higher output voltageSupports parallel operation for higher output powerUp to 78% efficiency3-kVDC Isolation (operational): 1-second testContinuous voltage applied across isolation barrier: 60 VDC / 42.5 VACUL60950 certified productIndustry standard footprintJEDEC 7-pin SIP packageInput voltage: 5 V ±10%Output voltage: ±5 V, ±12 V, or ±15 VSupports series operation for higher output voltageSupports parallel operation for higher output powerUp to 78% efficiency
Description
AI

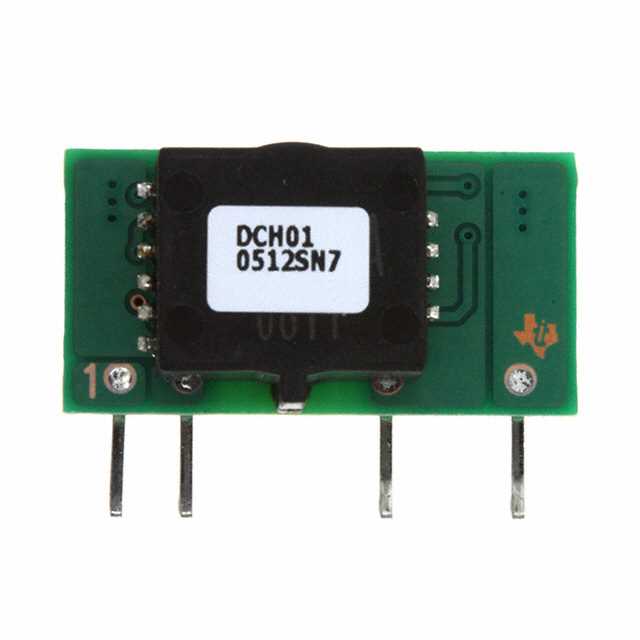

The DCH010505, DCH010512, and DCH010515 devices are a family of miniature, 1-W, 3-kV isolated DC/DC converters. Featured in an industry standard 7-pin SIP package, the DCH01 series requires minimal external components, reducing board space. The DCH01 series provides both single and dual split-supply outputs.
The use of a highly integrated package design results in highly reliable products with high power densities. High performance and small size makes the DCH01 suitable for a wide range of applications including signal chain applications and ground loop elimination.
The DCH010505, DCH010512, and DCH010515 devices are a family of miniature, 1-W, 3-kV isolated DC/DC converters. Featured in an industry standard 7-pin SIP package, the DCH01 series requires minimal external components, reducing board space. The DCH01 series provides both single and dual split-supply outputs.
The use of a highly integrated package design results in highly reliable products with high power densities. High performance and small size makes the DCH01 suitable for a wide range of applications including signal chain applications and ground loop elimination.
