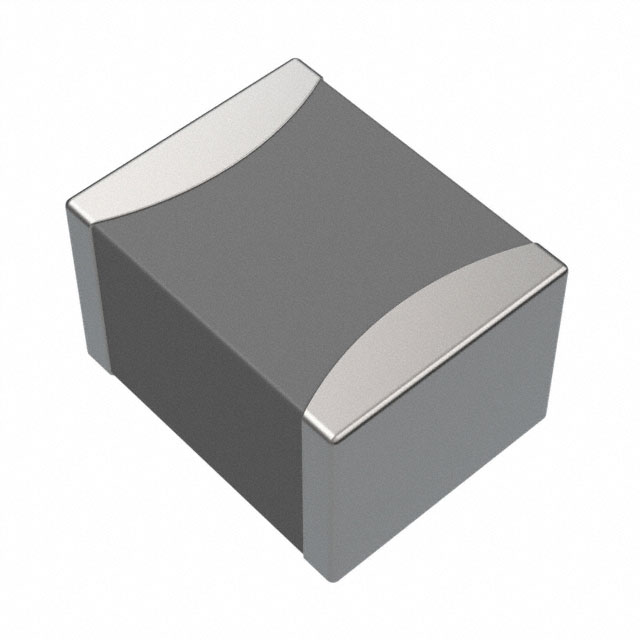

DFE322512F Series

Catalog

FIXED IND 1.5UH 3A 48 MOHM SMD

Part	Current - Saturation (Isat)	Material - Core	Shielding	Inductance Frequency - Test	Current Rating (Amps)	Inductance	Mounting Type	Type	Tolerance	Supplier Device Package	DC Resistance (DCR) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Murata Electronics DFE322512F-1R5M=P2	3.9 A	Metal	Shielded	1 MHz	3 A	1.5 µH	Surface Mount	Drum Core Wirewound	20 %	1210	48 mOhm	125 °C	-40 C	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	1.2 mm	0.047 "
Murata Electronics DFE322512F-R33M=P2	8.5 A	Metal	Shielded	1 MHz	5.4 A	330 nH	Surface Mount	Drum Core Wirewound	20 %	1210	20 mOhm	125 °C	-40 C	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	1.2 mm	0.047 "
Murata Electronics DFE322512F-4R7M=P2	2.3 A	Metal	Shielded	1 MHz	1.6 A	4.7 ÁH	Surface Mount	Drum Core Wirewound	20 %	1210	157 mOhm	125 °C	-40 C	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	1.2 mm	0.047 "
Murata Electronics DFE322512F-3R3M=P2	2.6 A	Metal	Shielded	1 MHz	2 A	3.3 µH	Surface Mount	Drum Core Wirewound	20 %	1210	108 mOhm	125 °C	-40 C	1210	3225 Metric	2.5 mm	0.098 in	3.2 mm	0.126 "	1.2 mm	0.047 "
