LD35W Series

Catalog

LED DRIVER AC/DC CC 18-54V 700MA

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Features	Voltage - Input (Min) [Min]	Type	Current - Output (Max) [Max]	Ratings	Voltage - Input (Max) [Max]	Power (Watts)	Topology	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Dimming	Number of Outputs	Efficiency	Voltage - Isolation	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]

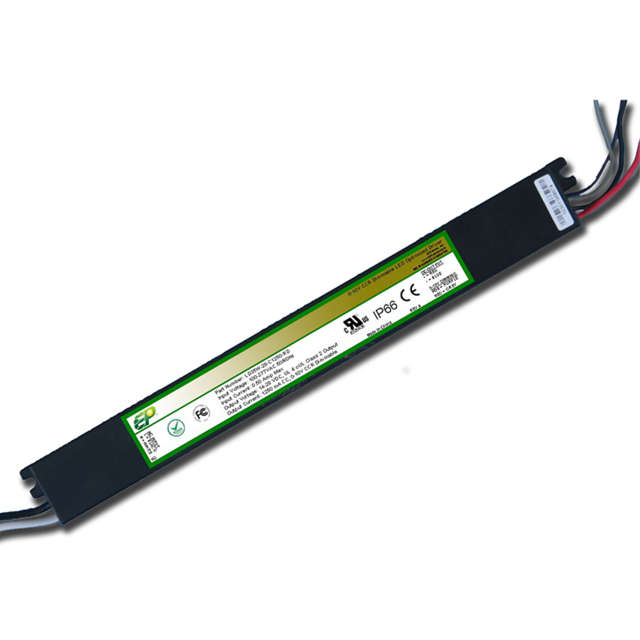

EPtronics, Inc. LD35W-54-C0700-RD	Chassis Mount	1.05 in	213.1 mm	8.39 in	26.7 mm	1.02 "	25.9 mm	OCP OVP SCP	100 VAC	Constant Current	700 mA	IP65	277 VAC	38 Watts	AC DC Converter	Wire Leads	18 V	54 V	Analog PWM	1	85 %	3750 VDC	CE cURus FCC	-30 ░C	60 °C
EPtronics, Inc. LD35W-36-C1050-RD	Chassis Mount	1.05 in	213.1 mm	8.39 in	26.7 mm	1.02 "	25.9 mm	OCP OVP SCP	100 VAC	Constant Current	1.05 A	IP65	277 VAC	38 Watts	AC DC Converter	Wire Leads	18 V	36 V	Analog PWM	1	84 %	3750 VDC	CE cURus FCC	-30 ░C	60 °C
