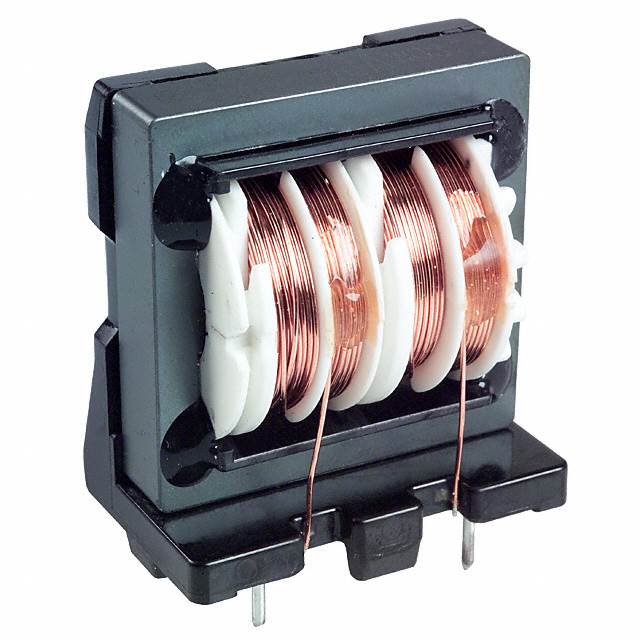

ELF-24 Series

Catalog

CMC 1.5A 2LN TH

Part	DC Resistance (DCR) (Max)	Height (Max) [Max]	Height (Max) [Max]	Number of Lines	Package / Case	Package / Case	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	DC Resistance (DCR) (Max) [Max]
Panasonic Industrial Automation Sales ELF-24V015A	274 mOhm	42.5 mm	1.673 "	2	4 Lead	Vertical	1.5 A	24 mm	1.457 in	0.945 in	37 mm	Through Hole
Panasonic Industrial Automation Sales ELF-24V025A	124 mOhm	42.5 mm	1.673 "	2	4 Lead	Vertical	2.5 A	24 mm	1.457 in	0.945 in	37 mm	Through Hole
Panasonic Industrial Automation Sales ELF-24V020A	161 mOhm	42.5 mm	1.673 "	2	4 Lead	Vertical	2 A	24 mm	1.457 in	0.945 in	37 mm	Through Hole
Panasonic Industrial Automation Sales ELF-24V010A	608 mOhm	42.5 mm	1.673 "	2	4 Lead	Vertical	1 A	24 mm	1.457 in	0.945 in	37 mm	Through Hole
Panasonic Industrial Automation Sales ELF-24V080A		42.5 mm	1.673 "	2	4 Lead	Vertical	8 A	24 mm	1.457 in	0.945 in	37 mm	Through Hole	15 mOhm
