PS2911-1 Series

High CTR, 4-Pin Ultra Small Package Flat-lead Photocoupler

Manufacturer: Renesas Electronics Corporation

Catalog

High CTR, 4-Pin Ultra Small Package Flat-lead Photocoupler

Part	Current Transfer Ratio (Min) [Min]	Voltage - Forward (Vf) (Typ)	Output Type	Supplier Device Package	Package / Case	Voltage - Isolation	Vce Saturation (Max) [Max]	Current - DC Forward (If) (Max)	Current - Output / Channel [custom]	Voltage - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Input Type	Number of Channels	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]
Renesas Electronics Corporation PS2911-1-L-AX	150 %	1.1 V	1.81 mOhm	4-Mini-Flat	4-SMD Flat Leads	2500 Vrms	300 mV	50 mA	40 mA	40 V	100 °C	-55 °C	300 %	10 µs	5 µs	Surface Mount	DC	1	120 µs	40 µs

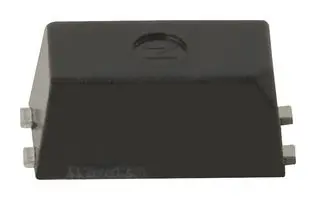

Renesas Electronics Corporation PS2911-1-F3-AX	100 %	1.1 V	1.81 mOhm	4-Mini-Flat	4-SMD Flat Leads	2500 Vrms	300 mV	50 mA	40 mA	40 V	100 °C	-55 °C	400 %	10 µs	5 µs	Surface Mount	DC	1	120 µs	40 µs
Renesas Electronics Corporation PS2911-1-K-AX	200 %	1.1 V	1.81 mOhm	4-Mini-Flat	4-SMD Flat Leads	2500 Vrms	300 mV	50 mA	40 mA	40 V	100 °C	-55 °C	400 %	10 µs	5 µs	Surface Mount	DC	1	120 µs	40 µs
Renesas Electronics Corporation PS2911-1-F3-K-AX	200 %	1.1 V	1.81 mOhm	4-Mini-Flat	4-SMD Flat Leads	2500 Vrms	300 mV	50 mA	40 mA	40 V	100 °C	-55 °C	400 %	10 µs	5 µs	Surface Mount	DC	1	120 µs	40 µs

Catalog

High CTR, 4-Pin Ultra Small Package Flat-lead Photocoupler

Description

The PS2911-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor in one package for high density mounting applications. An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30% compared with the PS28xx series.
