CT11024 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Mounting Type	Actuator Type	Illumination	Actuator Orientation	Termination Style	Outline [x]	Outline [y]	Switch Function	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Height off PCB, Vertical [z]	Contact Rating @ Voltage

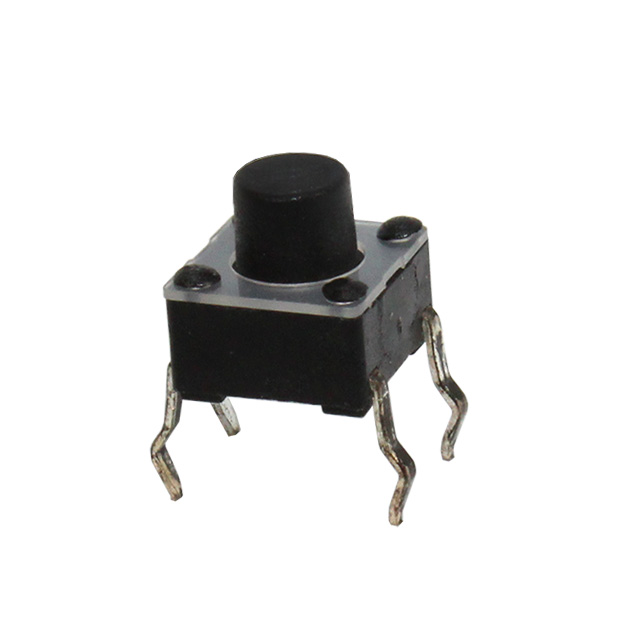

CIT Relay and Switch CT11024.3F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Through Hole	Plunger for Cap	Non-Illuminated	Top Actuated	PC Pin	6 mm	6 mm	Off-Mom	100 gf	SPST-NO	85 °C	-40 C	4.3 mm	0.05 A 50 VDC
CIT Relay and Switch CT11024.3F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Through Hole	Plunger for Cap	Non-Illuminated	Top Actuated	PC Pin	6 mm	6 mm	Off-Mom	260 gf	SPST-NO	85 °C	-40 C	4.3 mm	0.05 A 50 VDC

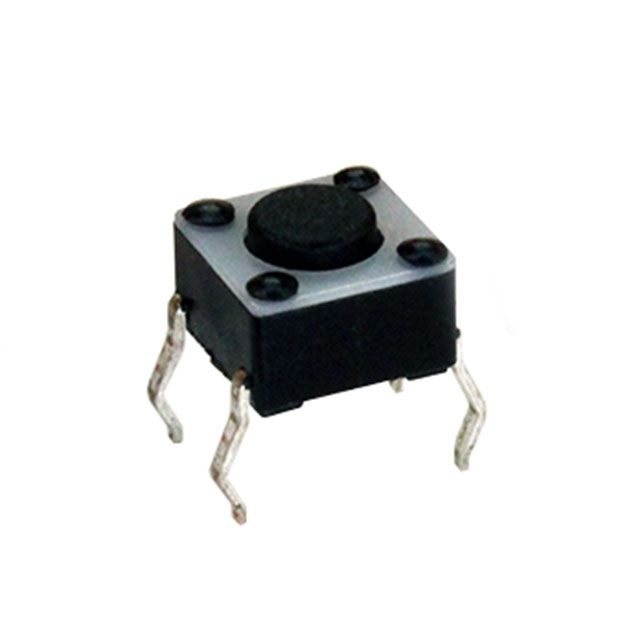

CIT Relay and Switch CT11024.3F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Through Hole	Standard	Non-Illuminated	Top Actuated	PC Pin	6 mm	6 mm	Off-Mom	160 gf	SPST-NO	85 °C	-40 C	4.3 mm	0.05 A 50 VDC
