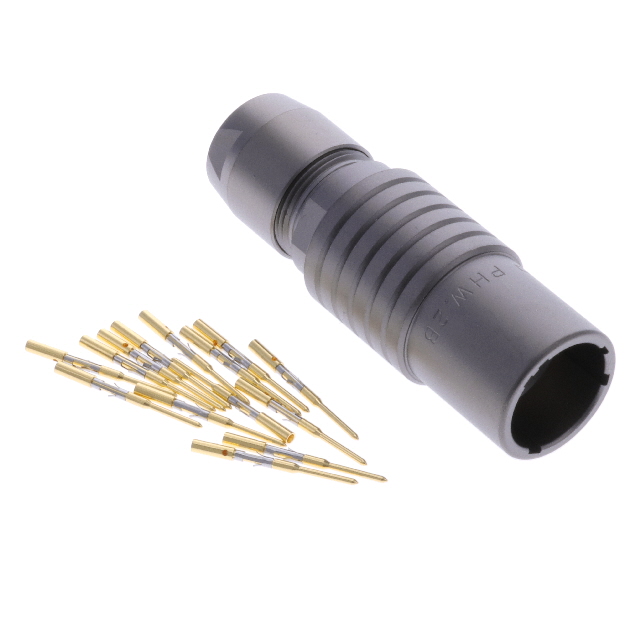

PHW.2B Series
Manufacturer: LEMO
Beta
⌘K
CONN RCPT MALE 14POS GOLD CRIMP
| Part | Ingress Protection | Number of Positions | Mounting Type | Material Flammability Rating | Color | Fastening Type | Primary Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Termination | Insert Material | Contact Material | Orientation | Backshell Material, Plating | Current Rating (Amps) | Features | Shielding | Shell Finish | Contact Finish - Mating | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Shell Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP50 - Dust Protected | 14 | Free Hanging (In-Line) | UL94 V-0 | Gray | Push-Pull | Metal | Receptacle Male Pins | -55 C | 250 °C | 314 | Crimp | Polyetheretherketone (PEEK) | Brass | W | Aluminum Alloy Nickel | 6.5 A | Backshell | Shielded | Nickel | Gold | 0.205 in | 4.2 mm | 5.2 mm | 0.165 " | Aluminum Alloy | 39.4 µin | 1 µm | |
IP50 - Dust Protected | 14 | Free Hanging (In-Line) | UL94 V-0 | Gray | Push-Pull | Metal | Receptacle Male Pins | -55 C | 250 °C | 314 | Crimp | Polyetheretherketone (PEEK) | Brass | W | Aluminum Alloy Nickel | 6.5 A | Backshell | Shielded | Nickel | Gold | 0.244 " | 5.2 mm | 6.2 mm | 0.205 in | Aluminum Alloy | 39.4 µin | 1 µm | |
IP50 - Dust Protected | 14 | Free Hanging (In-Line) | UL94 V-0 | Gray | Push-Pull | Metal | Receptacle Male Pins | -55 C | 250 °C | 314 | Crimp | Polyetheretherketone (PEEK) | Brass | W | Aluminum Alloy Nickel | 6.5 A | Backshell | Shielded | Nickel | Gold | 0.244 " | 5.2 mm | 6.2 mm | 0.205 in | Aluminum Alloy | 39.4 µin | 1 µm | |
IP50 - Dust Protected | 14 | Free Hanging (In-Line) | UL94 V-0 | Gray | Push-Pull | Metal | Receptacle Male Pins | -55 C | 250 °C | 314 | Crimp | Polyetheretherketone (PEEK) | Brass | W | Aluminum Alloy Nickel | 6.5 A | Backshell | Shielded | Nickel | Gold | 0.323 " | 7.2 mm | 8.2 mm | 0.283 " | Aluminum Alloy | 39.4 µin | 1 µm | |
IP50 - Dust Protected | 14 | Free Hanging (In-Line) | UL94 V-0 | Gray | Push-Pull | Metal | Receptacle Male Pins | -55 C | 250 °C | 314 | Polyetheretherketone (PEEK) | Brass | W | Aluminum Alloy Nickel | 6.5 A | Backshell | Shielded | Nickel | Gold | 0.205 in | 4.2 mm | 5.2 mm | 0.165 " | Aluminum Alloy | 39.4 µin | 1 µm |
