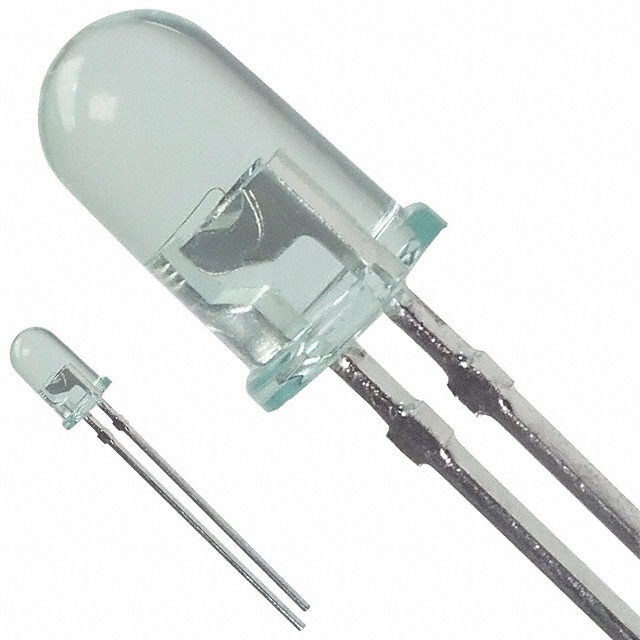

HLMP-3950 Series

Catalog

LED, GREEN, THROUGH HOLE, T-1 3/4 (5MM), 20 MA, 2.2 V, 569 NM

Part	Supplier Device Package	Package / Case	Color	Millicandela Rating	Wavelength - Peak	Lens Color	Height (Max) [Max] [z]	Viewing Angle	Lens Transparency	Configuration	Lens Style	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Size	Lens Size	Wavelength - Dominant	Current - Test
Broadcom Limited HLMP-3950	T-1 3/4	Radial	Green	265 mcd	565 nm	Colorless	12.44 mm	24 °	Clear	Standard	Round with Domed Top	Through Hole	2.2 V	5 mm	T-1 3/4	569 nm	20 mA
Broadcom Limited HLMP-3950-LM000	T-1 3/4	Radial	Green	300 mcd	565 nm		12.44 mm	24 °	Clear	Standard	Round with Domed Top	Through Hole	2.2 V	5 mm	T-1 3/4	569 nm	20 mA
Broadcom Limited HLMP-3950-K0001	T-1 3/4	Radial	Green	265 mcd	565 nm		12.44 mm	24 °	Clear	Standard	Round with Domed Top	Through Hole	2.2 V	5 mm	T-1 3/4	569 nm	20 mA
