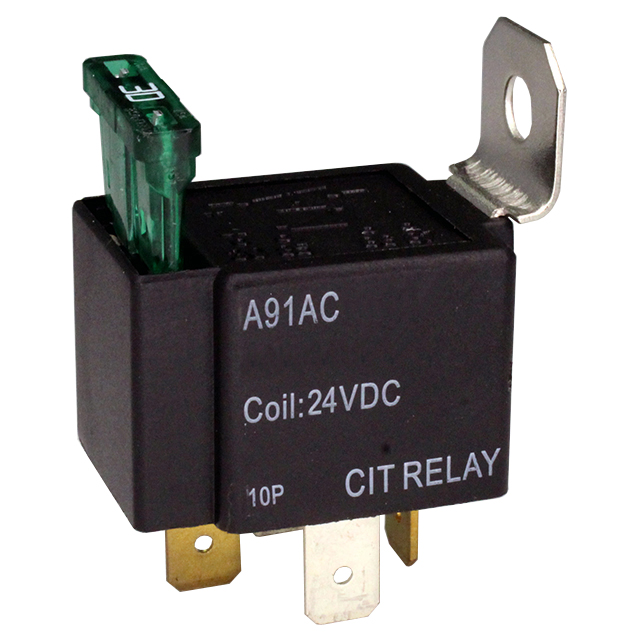

A91AC Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 24V
| Part | Contact Material | Coil Power | Coil Resistance | Contact Rating (Current) | Must Operate Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Must Release Voltage | Operate Time | Termination Style | Release Time | Coil Type | Coil Current | Mounting Type | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.8 W | 320 Ohms | 40 A | 16.8 VDC | SPST-NO (1 Form A) | 85 °C | -40 C | 75 VDC | 2.4 VDC | 7 ms | Quick Connect - 0.250" (6.3mm) | 5 ms | Non Latching | 0.075 A | Chassis Mount | 24 VDC |
