09620400 Series
Manufacturer: HARTING
Beta
⌘K
HAN EMC 40 HOOD SIDE ENTRY CENTRAL LEVER ROHS COMPLIANT: NA
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Connector Type | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Style | Ingress Protection | Size | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 71 mm | 106.5 mm | 2.795 " | 75 mm | 4.193 in | 2.953 " | Hood | Aluminum Die Cast | 125 °C | -40 C | Locking Clip (1) on Hood | Side Entry | IP65 - Dust Tight Water Resistant | 16 B | PG29 |

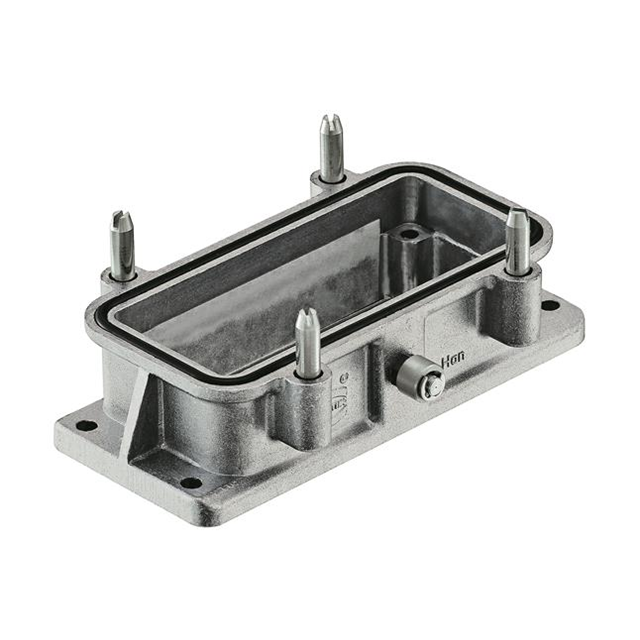

 HARTING | Base - Panel Mount | Aluminum Die Cast | 125 °C | -40 C | Locking Clip (1) on Hood | Bottom Entry | IP65 - Dust Tight Water Resistant | 16 B | |||||||

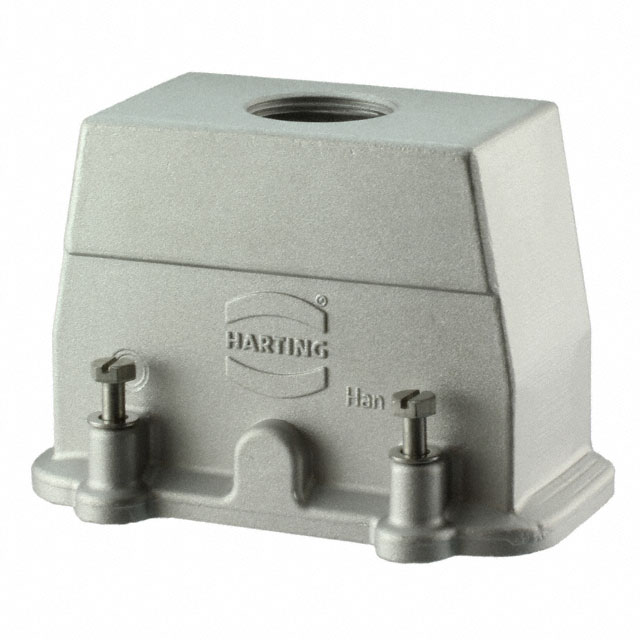

 HARTING | 71 mm | 106.5 mm | 2.795 " | 75 mm | 4.193 in | 2.953 " | Hood | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | Top Entry | IP65 - Dust Tight Water Resistant | 16 B | PG21 |

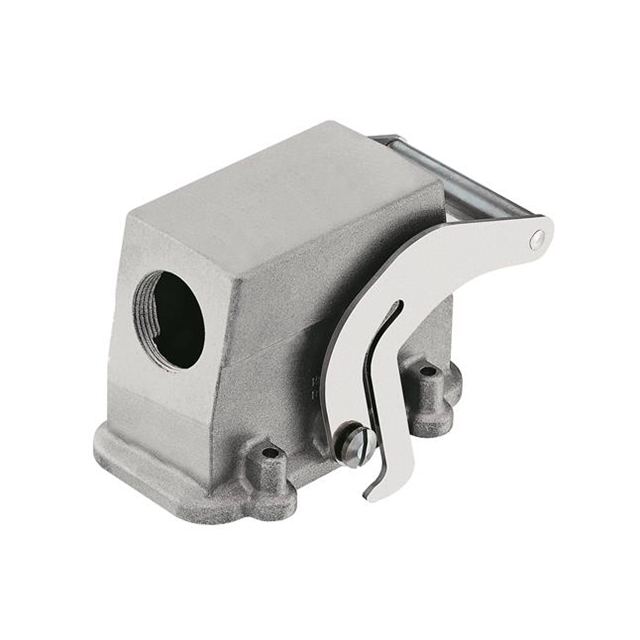

 HARTING | 71 mm | 106.5 mm | 2.795 " | 75 mm | 4.193 in | 2.953 " | Hood | Aluminum Die Cast | 125 °C | -40 C | Locking Clip (1) on Hood | Side Entry | IP65 - Dust Tight Water Resistant | 16 B | PG21 |

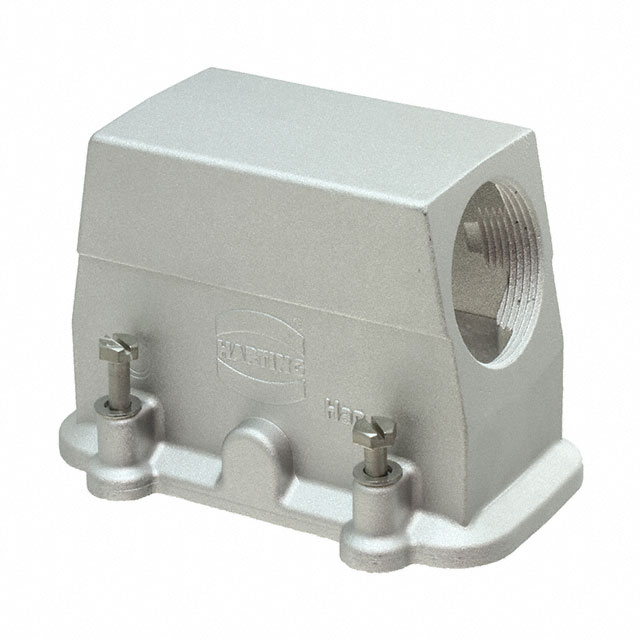

 HARTING | 71 mm | 106.5 mm | 2.795 " | 75 mm | 4.193 in | 2.953 " | Hood | Aluminum Die Cast | 125 °C | -40 C | Screw Locks on Hood | Side Entry | IP65 - Dust Tight Water Resistant | 16 B | PG29 |
