G4020 Series

Catalog

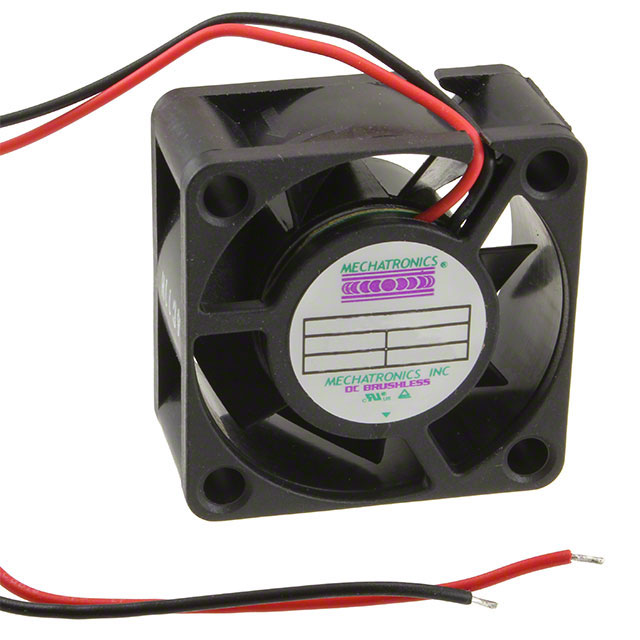

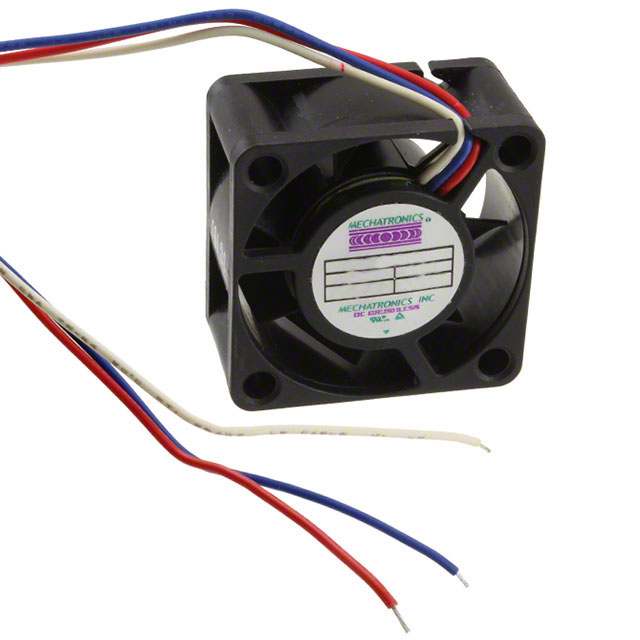

FAN AXIAL 40X20MM 5VDC WIRE

Part	Material - Blade	Current Rating (Amps)	Weight	Weight	Features	Noise	Approval Agency	Bearing Type	Width [y]	Termination	RPM	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Voltage - Rated	Static Pressure	Static Pressure	Air Flow	Air Flow	Ingress Protection
Mechatronics Fan Group G4020H05B1+6-RS-WS	Polybutylene Terephthalate (PBT)	0.3 A	0.062 lb	28.12 g	Alarm Sensor PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	29 dB(A)	CE cUL TUV UL	Ball	20 mm	5 Wire Leads	7000 RPM	40 mm	40 mm	Tubeaxial	5 V	0.2 in H2O	49.8 Pa
Mechatronics Fan Group G4020S05B-RSR	Polybutylene Terephthalate (PBT)	120 mA	0.062 lb	28.12 g	Thermal Overload Protector (TOP)	21 dB(A)	CE cUL TUV UL	Ball	20 mm	2 Wire Leads	4000 RPM	40 mm	40 mm	Tubeaxial	5 V	0.07 in H2O	17.4 Pa	6 CFM	0.168 mł/min

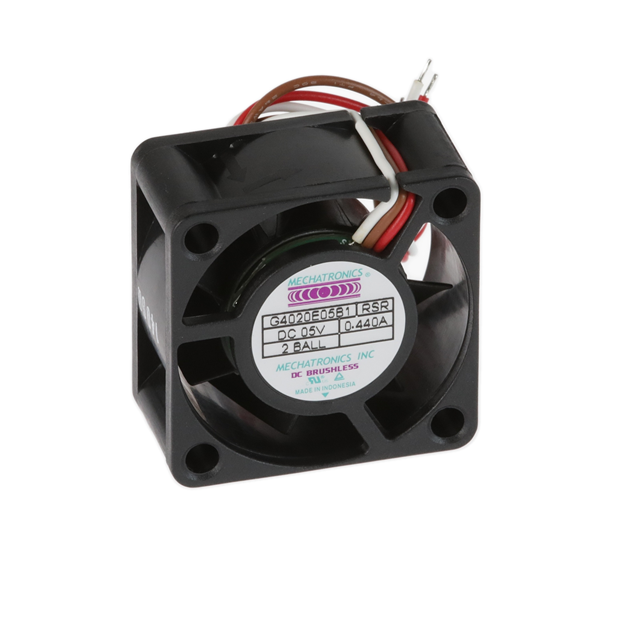

Mechatronics Fan Group G4020E05B1-RSR	Polybutylene Terephthalate (PBT)	0.44 A	0.062 lb	28.12 g	Speed Sensor (Tach) Thermal Overload Protector (TOP)	32 dB	CE cUL TUV UL	Ball	20 mm	3 Wire Leads	8000 RPM	40 mm	40 mm	Tubeaxial	5 V	0.23 in H2O	57.3 Pa	11.7 CFM	0.328 mł/min
Mechatronics Fan Group G4020H24B1-RSR	Polybutylene Terephthalate (PBT)		0.062 lb	28.12 g	Speed Sensor (Tach) Thermal Overload Protector (TOP)	29 dB(A)	CE cUL TUV UL	Ball	20 mm	3 Wire Leads	7000 RPM	40 mm	40 mm	Tubeaxial	24 VDC	0.2 in H2O	49.8 Pa	11 CFM	0.308 m³/min

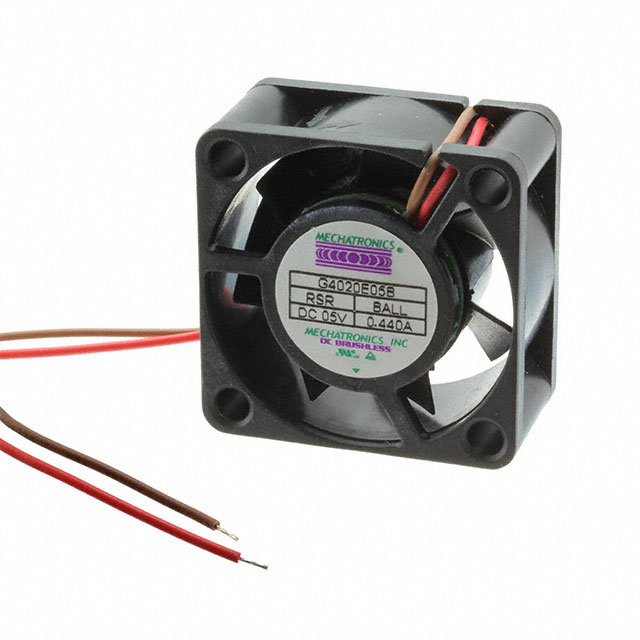

Mechatronics Fan Group G4020E05B-RSR	Polybutylene Terephthalate (PBT)	0.44 A	0.062 lb	28.12 g	Thermal Overload Protector (TOP)	32 dB	CE cUL TUV UL	Ball	20 mm	2 Wire Leads	8000 RPM	40 mm	40 mm	Tubeaxial	5 V	0.23 in H2O	57.3 Pa	11.7 CFM	0.328 mł/min
Mechatronics Fan Group G4020L12B1-RSR-WS	Polybutylene Terephthalate (PBT)	70 mA	0.062 lb	28.12 g	Alarm Sensor Speed Sensor (Tach) Thermal Overload Protector (TOP)	23 dB(A)	CE cUL TUV UL	Ball	20 mm	4 Wire Leads	5000 RPM	40 mm	40 mm	Tubeaxial	12 VDC	0.11 in H2O	27.4 Pa	8 CFM	0.224 mł/min
Mechatronics Fan Group G4020E12B2-RSR	Polybutylene Terephthalate (PBT)		0.062 lb	28.12 g	Locked Rotor Sensor Thermal Overload Protector (TOP)	32 dB	CE cUL TUV UL	Ball	20 mm	3 Wire Leads	8000 RPM	40 mm	40 mm	Tubeaxial	12 VDC	0.23 in H2O	57.3 Pa	11.7 CFM	0.328 mł/min
Mechatronics Fan Group G4020M05B2-RSR	Polybutylene Terephthalate (PBT)	0.22 A	0.062 lb	28.12 g	Locked Rotor Sensor Thermal Overload Protector (TOP)	26 dB	CE cUL TUV UL	Ball	20 mm	3 Wire Leads	6000 RPM	40 mm	40 mm	Tubeaxial	5 V			9 CFM	0.252 m³/min

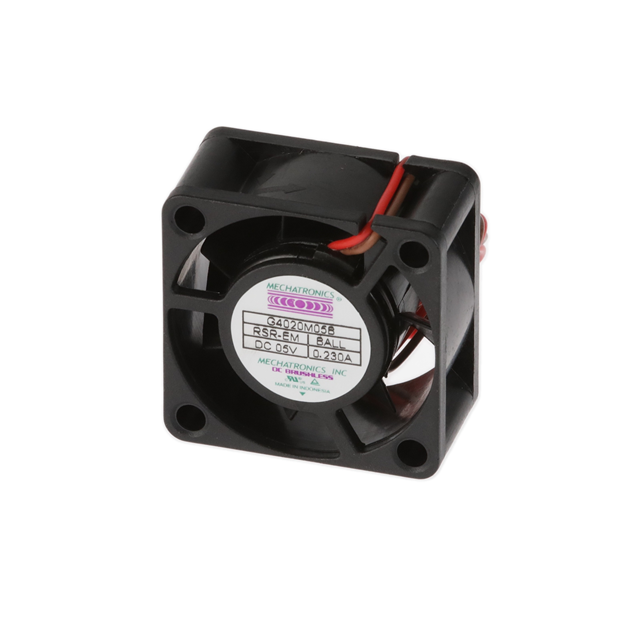

Mechatronics Fan Group G4020M05B-RSR-EM	Polybutylene Terephthalate (PBT)	0.22 A	0.062 lb	28.12 g	Thermal Overload Protector (TOP)	26 dB	CE cUL TUV UL	Ball	20 mm	2 Wire Leads	6000 RPM	40 mm	40 mm	Tubeaxial	5 V			9 CFM	0.252 m³/min	IP57 - Dust Protected Waterproof
Mechatronics Fan Group G4020E05B2-RSR-WS	Polybutylene Terephthalate (PBT)	0.44 A	0.062 lb	28.12 g	Alarm Sensor Locked Rotor Sensor Thermal Overload Protector (TOP)	32 dB	CE cUL TUV UL	Ball	20 mm	4 Wire Leads	8000 RPM	40 mm	40 mm	Tubeaxial	5 V	0.23 in H2O	57.3 Pa	11.7 CFM	0.328 mł/min
