745053 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

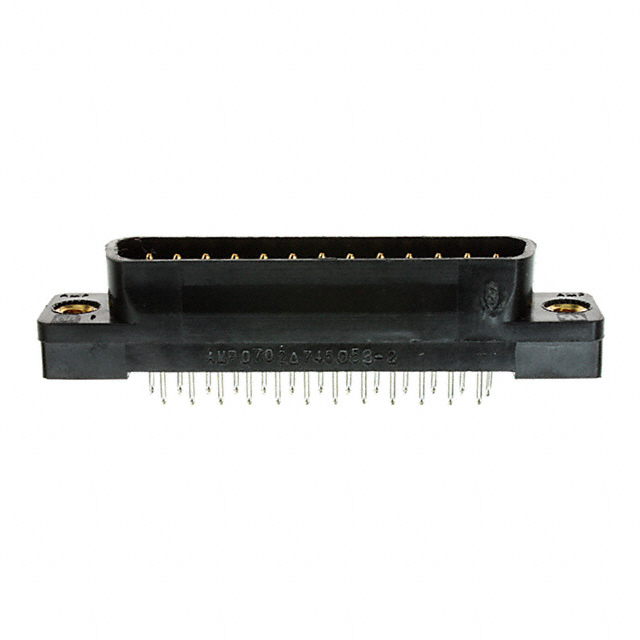

25 PLUG SP/AP INSRT ROHS COMPLIANT: NO
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Dielectric Material | Contact Type | Mounting Type | Material Flammability Rating | Contact Finish | Termination | Current Rating (Amps) | Flange Feature | Flange Feature | Number of Positions | Connector Type | Number of Rows [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 VDC | -55 C | 105 ░C | Black | Brass | Polyester | Signal | Through Hole | UL94 V-0 | Gold | Solder | 6 A | Housing/Shell | 4-40 | 25 | Plug Male Pins | 2 | B DB | 3 | D-Sub |
