ISL80138 Series

40V, Low Quiescent Current, 150mA Linear Regulator

Manufacturer: Renesas Electronics Corporation

Catalog

40V, Low Quiescent Current, 150mA Linear Regulator

Part	Output Configuration	Package / Case	Supplier Device Package	PSRR	Output Type	Number of Regulators	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Protection Features	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Control Features	Mounting Type	Voltage - Output (Max) [Max]	Voltage Dropout (Max) [Max]
Renesas Electronics Corporation ISL80138IVEAJZTR5632

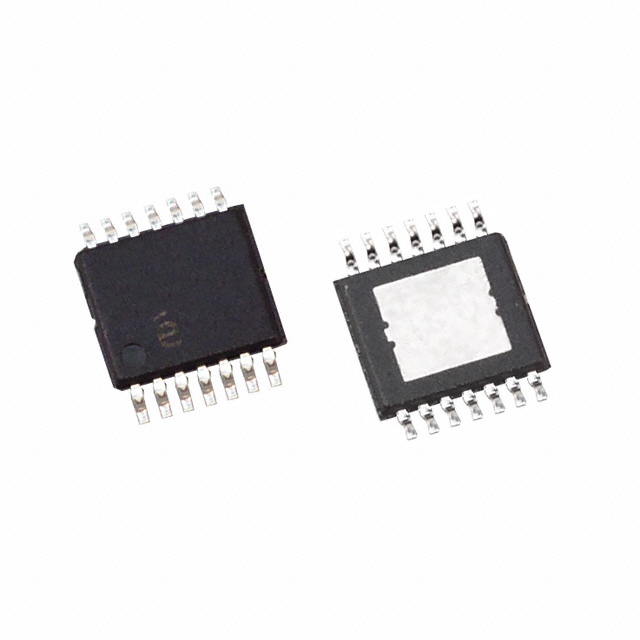

Renesas Electronics Corporation ISL80138IVEAJZ-T	Positive	14-TSSOP (0.173" 4.40mm Width) Exposed Pad	14-HTSSOP	66 dB	Adjustable	1	24 µA	2.5 V	Over Current Over Temperature Soft Start	125 °C	-40 °C	150 mA	Enable	Surface Mount	12 V	0.507 V

Catalog

40V, Low Quiescent Current, 150mA Linear Regulator

Description

The ISL80138 is a high voltage, adjustable VOUTlow quiescent current linear regulator ideally suited for "always-on" and "keep alive" applications. The ISL80138 operates from an input voltage of +6V to +40V under normal operating conditions and consumes only 18µA of quiescent current at no load. The ISL80138 features an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 2µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL80138 is rated to operate across the -40°C to +125°C temperature range and is available in a 14 lead HTSSOP with an exposed pad package.
