9874 Series
Manufacturer: Belden Inc.
Beta
⌘K

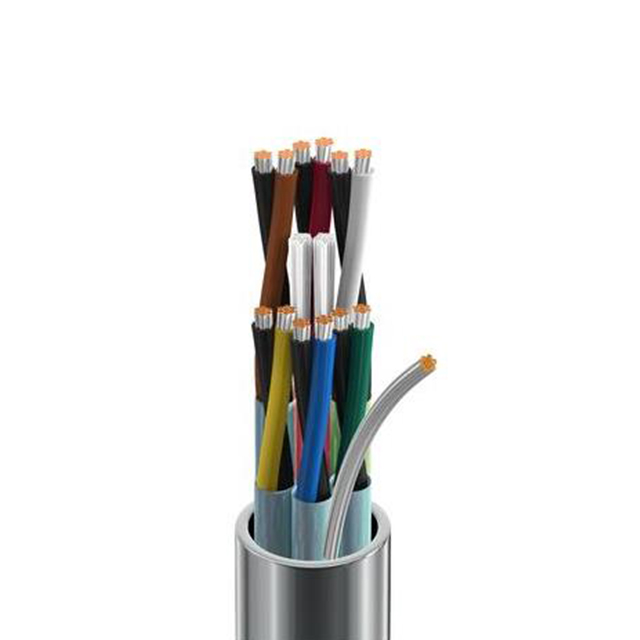

MULTI-PAIR 12COND 20AWG
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Conductor Material | Number of Conductors | Ratings | Wire Gauge | Cable Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | 28 AWG | 7 | Foil | Polypropylene (PP) | 0.035 in | 0.889 mm | 0.445 in | 11.3 mm | Poly-Vinyl Chloride (PVC) | Copper Tinned | 12 | UL Style 2919 | 20 AWG | Multi-Pair | Drain Wire | 80 °C | -20 ░C | Chrome | Audio Control Instrumentation |
