082-62 Series
Manufacturer: Amphenol RF
Beta
⌘K

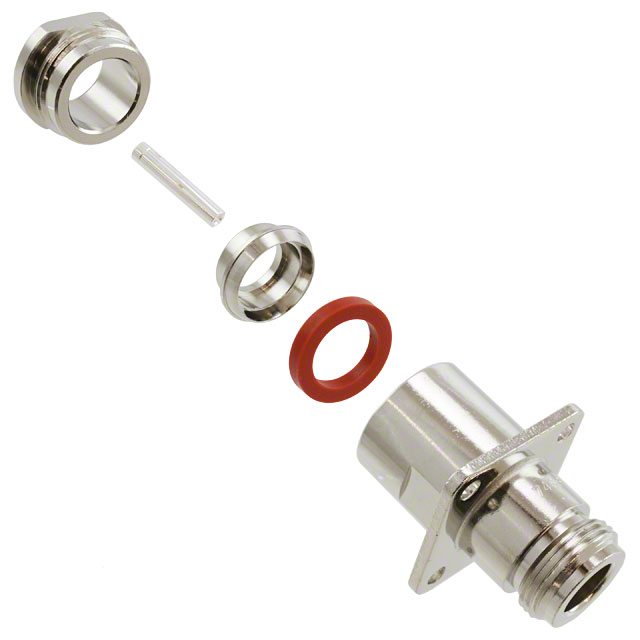

CONN N JACK STR 50 OHM SOLDER
| Part | Center Contact Material | Center Contact Plating | Body Finish | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Impedance | Insertion Loss | Body Material | Mating Cycles | Ingress Protection | Cable Group | Shield Termination | Dielectric Material | Connector Type | Frequency - Max [Max] | Mounting Feature | Voltage Rating | Connector Style | Contact Termination | Includes | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | Beryllium Copper | Silver | Nickel | Silver | -65 ░C | 165 °C | 50 Ohms | 0.15 dB | Brass | 500 | Weatherproof | Belden 9258 LMR-240 RG-8X | Clamp | Polytetrafluoroethylene (PTFE) | Female Socket Jack | 11 GHz | Flange | 1500 V | N Type | Solder | 1 Braid Clamp 1 Clamp 1 Connector 1 Contact 1 Gasket | 1 |
