629W7W Series
Manufacturer: EDAC Inc.
Beta
⌘K

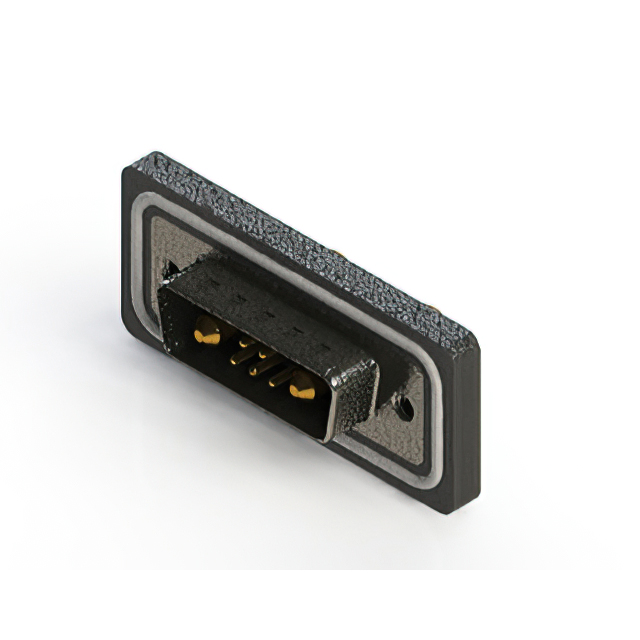

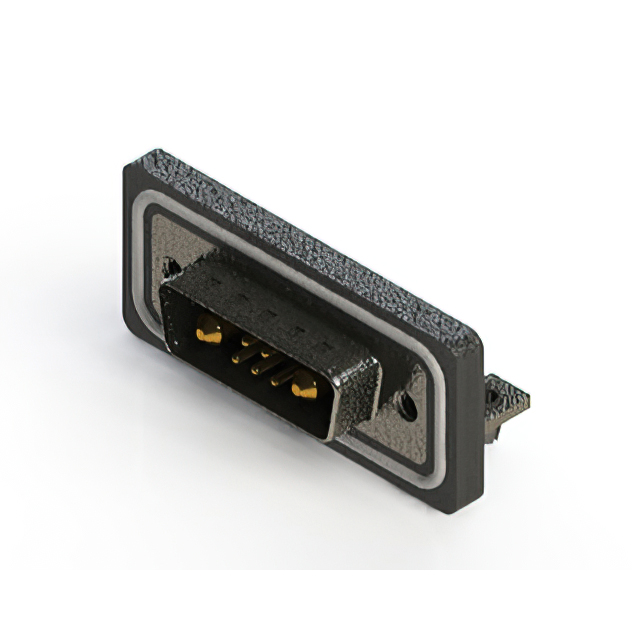

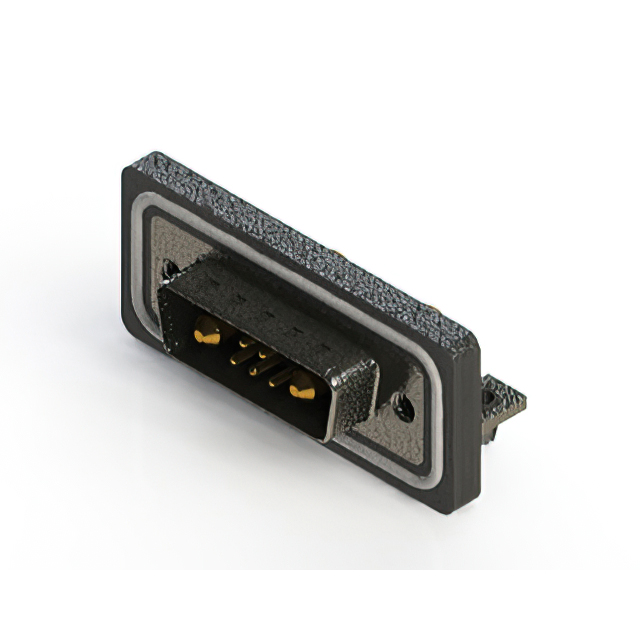

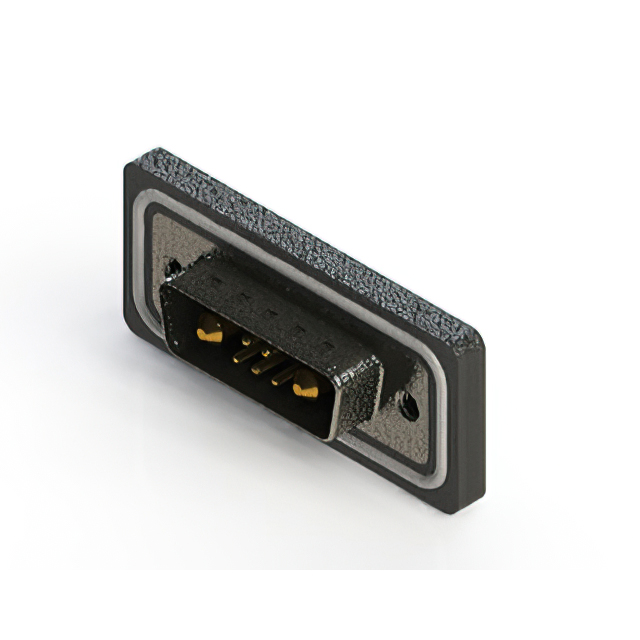

CONN D-SUB PLUG 7POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Color | Voltage Rating | Current Rating (Amps) | Connector Style | Features | Connector Type | Flange Feature | Flange Feature | Material Flammability Rating | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Contact Finish | Termination | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Ingress Protection | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 30 A | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Housing/Shell | 4-40 | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 30 Áin | 0.76 Ám | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 40 A | Combo D-Sub | Grounding Indents Shielded | Plug Male Pins | Housing/Shell | 4-40 | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 15 µin | 0.38 µm | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 30 A | Combo D-Sub | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Housing/Shell (M3) | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 15 µin | 0.38 µm | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Combo D-Sub | Grounding Indents Shielded | Plug Male Pins | Housing/Shell (M3) | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 15 µin | 0.38 µm | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 10A 5A | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 40 A | Combo D-Sub | Grounding Indents Shielded | Plug Male Pins | Housing/Shell (M3) | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 30 Áin | 0.76 Ám | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | Combo D-Sub | Grounding Indents Shielded | Plug Male Pins | Housing/Shell (M3) | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 15 µin | 0.38 µm | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 20A 5A | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 40 A | Combo D-Sub | Grounding Indents Shielded | Plug Male Pins | Housing/Shell | 4-40 | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 30 Áin | 0.76 Ám | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | ||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 40 A | Combo D-Sub | Grounding Indents Shielded | Plug Male Pins | Housing/Shell (M3) | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 15 µin | 0.38 µm | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 30 A | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Housing/Shell | 4-40 | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | Black | 125 VDC | 5 A 40 A | Combo D-Sub | Board Lock Filter Grounding Indents Mounting Brackets Shielded | Plug Male Pins | Housing/Shell (M3) | UL94 V-0 | Panel Mount Right Angle Through Hole | Signal and Power | 30 Áin | 0.76 Ám | 2 | Gold | Solder | 7 | 5 | 2 | A DA | 2 | 7W2 | Nickel Plated Steel | IP67 - Dust Tight Waterproof |
