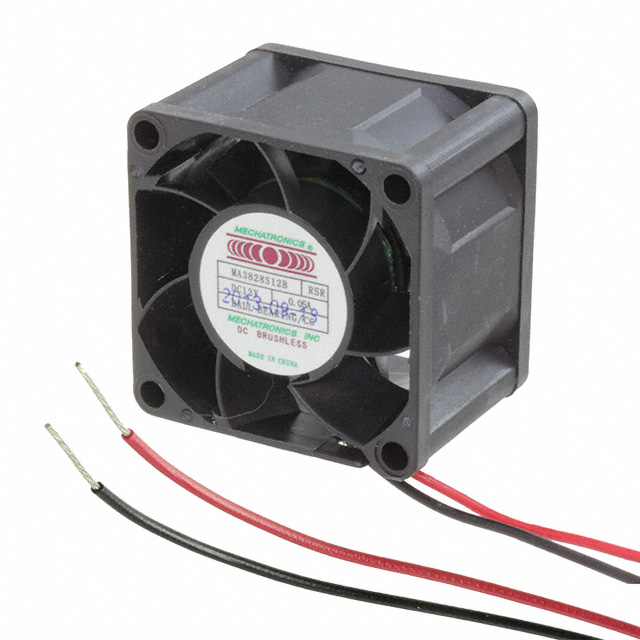

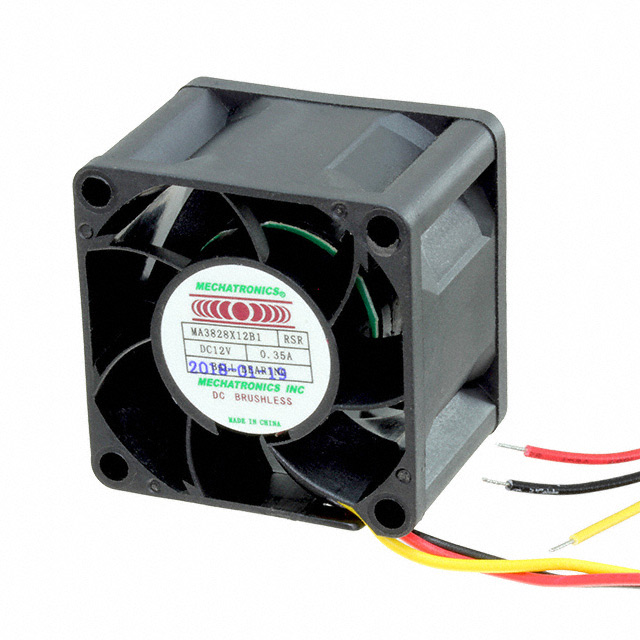

MA3828 Series

Catalog

FAN AXIAL 38X28MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Current Rating (Amps)	Termination	Fan Type	Noise	Weight	Weight	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Features	Size / Dimension [x]	Size / Dimension [z]	Width [x]	Air Flow	Air Flow	RPM	Bearing Type
Mechatronics Fan Group MA3828S12B1-RSR	7 V	13.2 VDC	Polybutylene Terephthalate (PBT)	50 mA	3 Wire Leads	Tubeaxial	30.8 dB(A)	0.078 lb	35.38 g	33.9 Pa	0.136 in H2O	cUL UL	12 VDC	Speed Sensor (Tach) Thermal Overload Protector (TOP)	38 mm	38 mm	28 mm	0.174 mł/min	6.2 CFM	5000 RPM	Ball

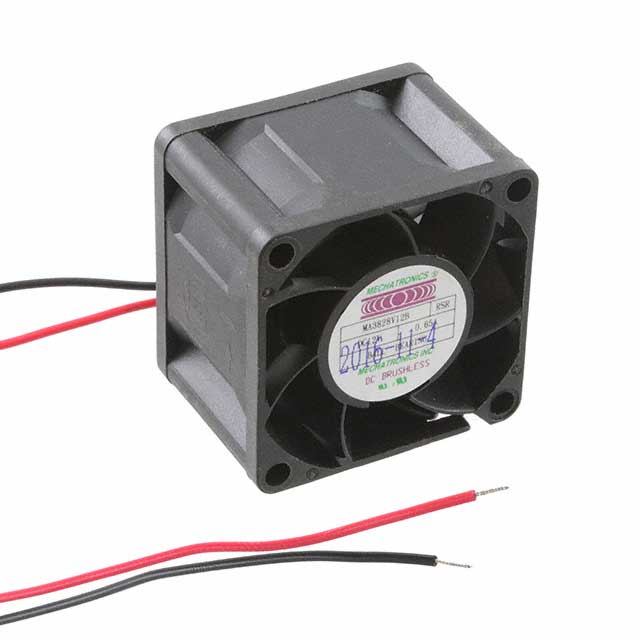

Mechatronics Fan Group MA3828V12B-RSR	7 V	13.2 VDC	Polybutylene Terephthalate (PBT)	650 mA	2 Wire Leads	Tubeaxial	53.1 dB(A)	0.078 lb	35.38 g	285.2 Pa	1.145 in H2O	cUL UL	12 VDC	Thermal Overload Protector (TOP)	38 mm	38 mm	28 mm	0.546 m³/min	19.5 CFM	15000 RPM	Ball
Mechatronics Fan Group MA3828S12B-RSR-CC	7 V	13.2 VDC	Polybutylene Terephthalate (PBT)	50 mA	2 Wire Leads	Tubeaxial	30.8 dB(A)	0.078 lb	35.38 g	33.9 Pa	0.136 in H2O	cUL UL	12 VDC	Conformal Coating Thermal Overload Protector (TOP)	38 mm	38 mm	28 mm	0.174 mł/min	6.2 CFM	5000 RPM	Ball
