788 Series
Manufacturer: WAGO Corporation
Beta
⌘K
JUMPER (BUSBAR), INSULATED JUMPERS, WAGO TOPJOB-S TERMINAL BLOCK SERIES, 8 POSITIONS
| Part | For Use With/Related Products | Style | Number of Positions | Type | Coil Resistance | Contact Rating (Current) | Coil Type | Switching Voltage [Max] | Release Time | Relay Type | Coil Current | Load - Max Switching [Max] | Termination Style | Operate Time | Contact Form | Features | Mounting Type | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Must Operate Voltage | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

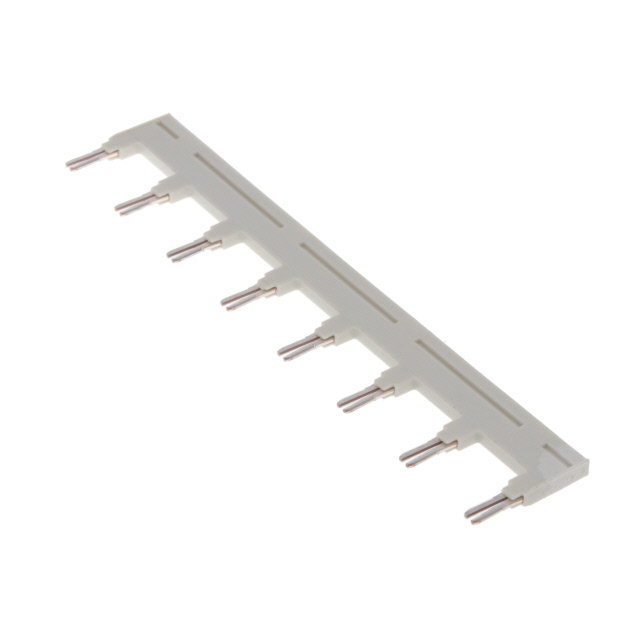

 WAGO Corporation | Terminal Blocks | Flat Pins | 8 | Terminal Block Cross Connection | |||||||||||||||||||

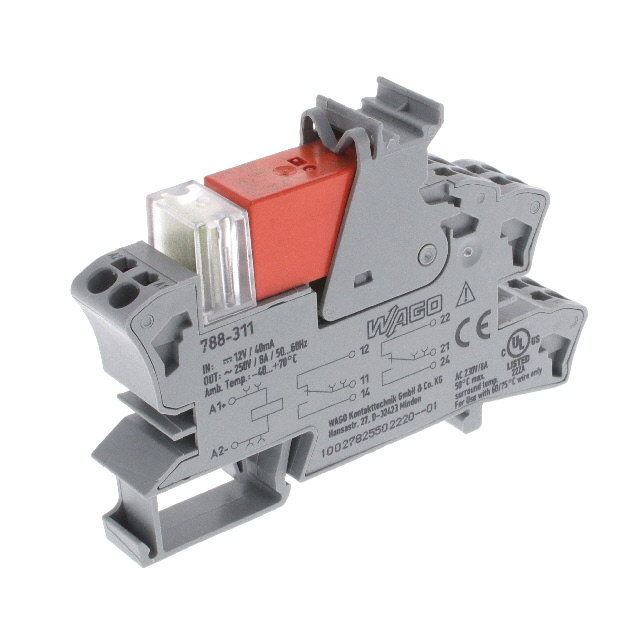

 WAGO Corporation | 333.3 Ohms | 8 A | Non Latching | 250 VAC | 13 ms | General Purpose | 36 mA | 2000 VA | Spring Terminal | 8 ms | DPDT (2 Form C) | Lighted Indicator | DIN Rail | 12 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | ||||||

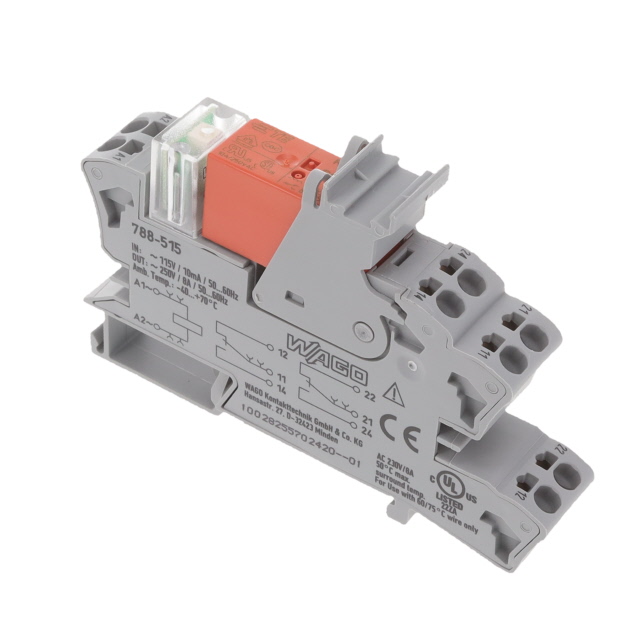

 WAGO Corporation | 14.4 kOhms | 8 A | Non Latching | 250 VAC | 35 ms | General Purpose | 2000 VA | Spring Terminal | 10 ms | DPDT (2 Form C) | Lighted Indicator | DIN Rail | 115 VAC | 70 °C | -40 C | Silver Nickel (AgNi) | 103.5 VAC | ||||||

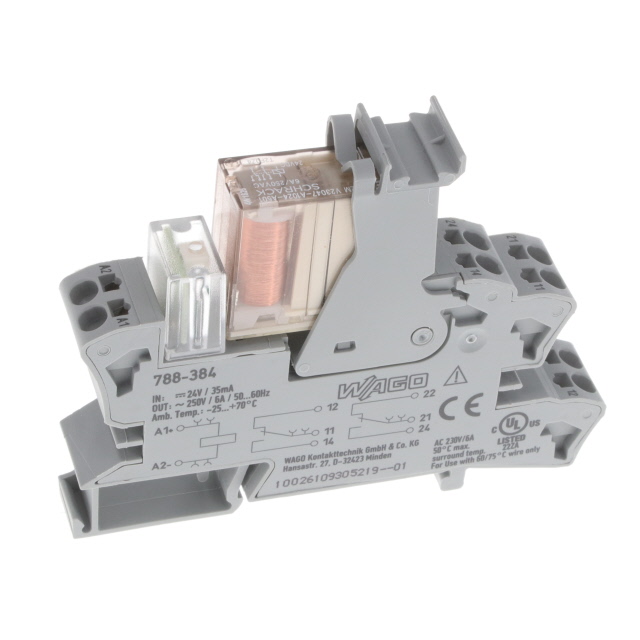

 WAGO Corporation | 774.2 Ohms | 6 A | Non Latching | 250 VAC | 4 ms | General Purpose | 31 mA | Spring Terminal | 10 ms | DPDT (2 Form C) | Lighted Indicator | DIN Rail | 24 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 20.4 VDC | 1500 VA | |||||

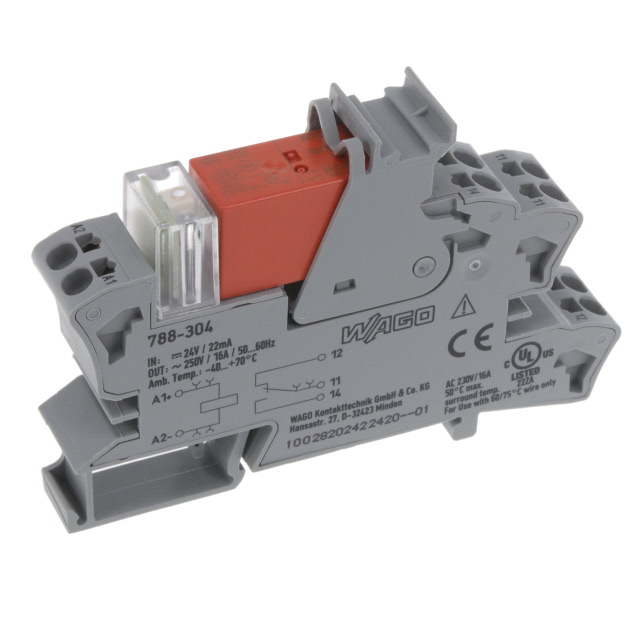

 WAGO Corporation | 1.3 kOhms | 16 A | Non Latching | 250 VAC | 6 ms | General Purpose | 19 mA | 4000 VA | Spring Terminal | 8 ms | SPDT (1 Form C) | Lighted Indicator | DIN Rail | 24 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 21.6 VDC | |||||

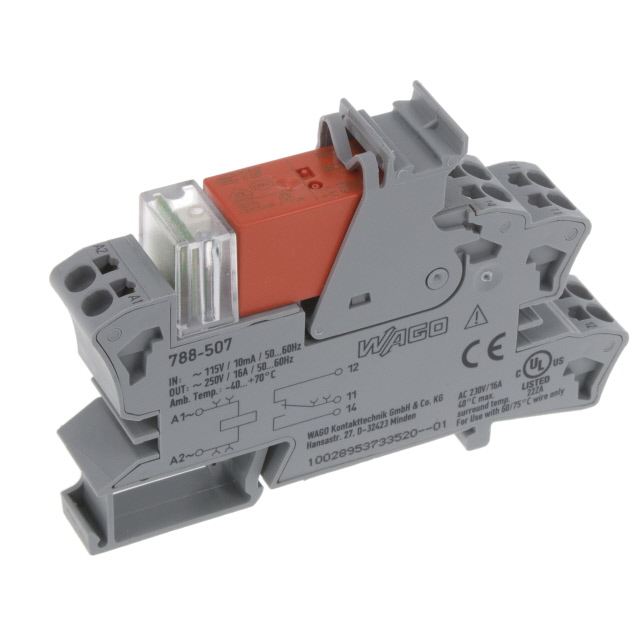

 WAGO Corporation | 14.4 kOhms | 16 A | Non Latching | 250 VAC | 35 ms | General Purpose | 4000 VA | Spring Terminal | 10 ms | SPDT (1 Form C) | Lighted Indicator | DIN Rail | 115 VAC | 70 °C | -40 C | Silver Nickel (AgNi) | 103.5 VAC | ||||||

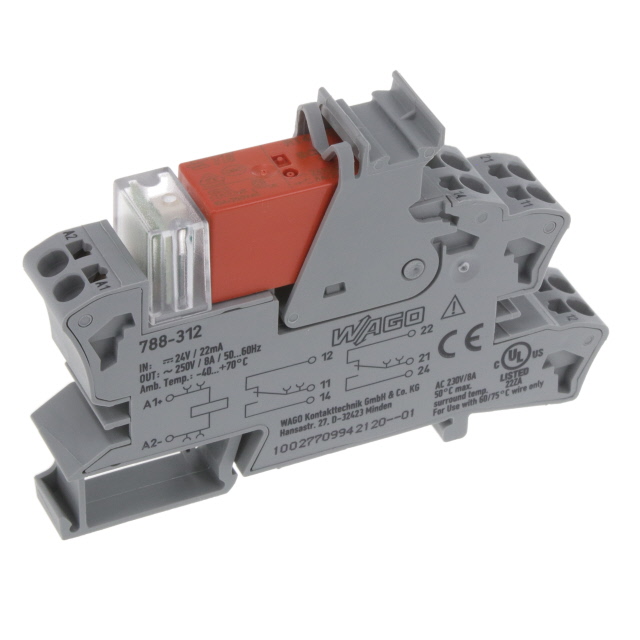

 WAGO Corporation | 1.3 kOhms | 8 A | Non Latching | 250 VAC | 13 ms | General Purpose | 19 mA | 2000 VA | Spring Terminal | 8 ms | DPDT (2 Form C) | Lighted Indicator | DIN Rail | 24 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | 21.6 VDC | |||||

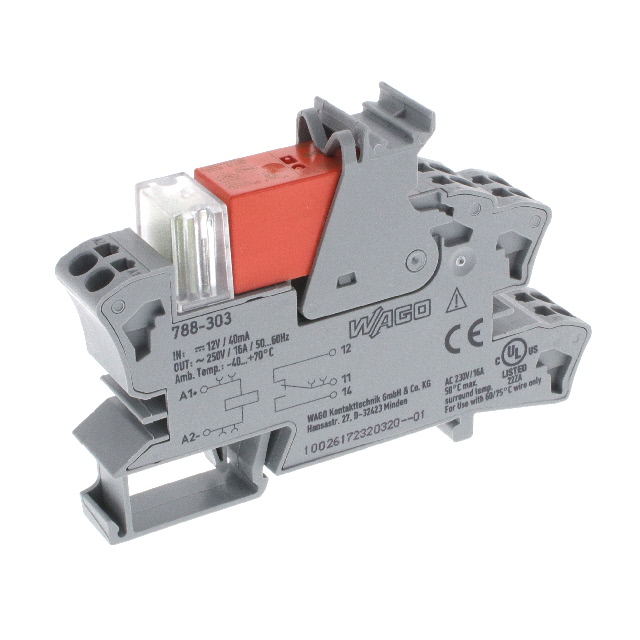

 WAGO Corporation | 333.3 Ohms | 16 A | Non Latching | 250 VAC | 6 ms | General Purpose | 36 mA | 4000 VA | Spring Terminal | 8 ms | SPDT (1 Form C) | Lighted Indicator | DIN Rail | 12 VDC | 70 °C | -40 C | Silver Nickel (AgNi) | ||||||
 WAGO Corporation | Terminal Blocks | Flat Pins | 2 | Terminal Block Cross Connection |
