8E2011 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

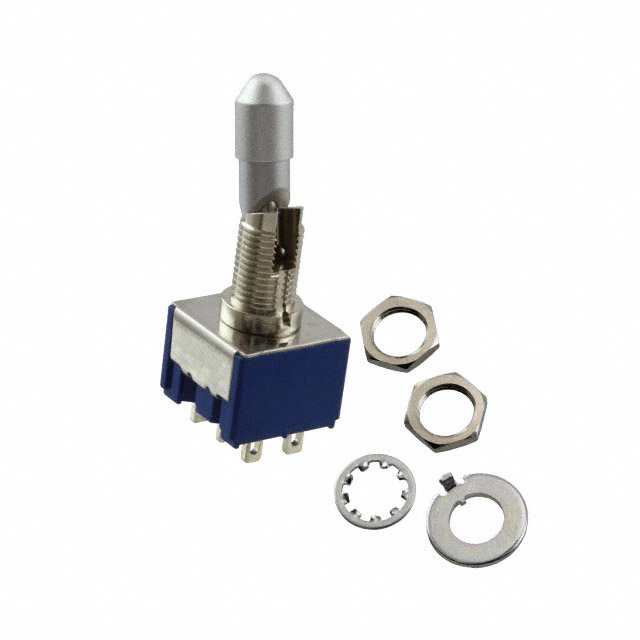

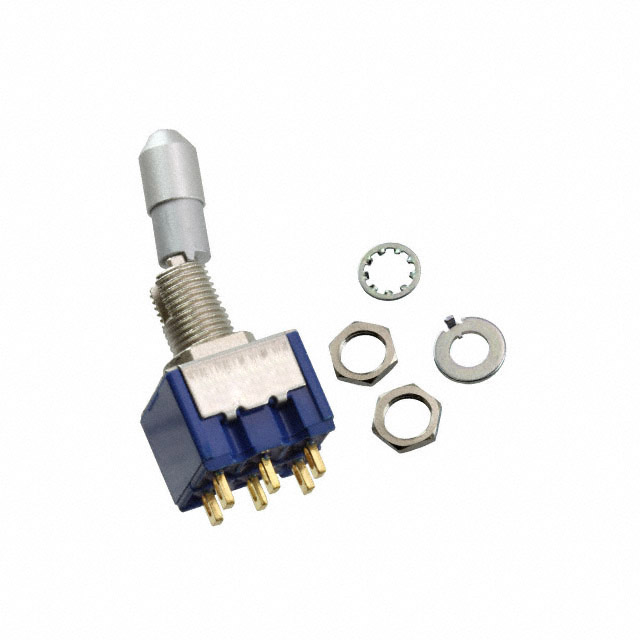

SWITCH TOGGLE ON ON DPDT LOCKING LEVER SOLDER 6A 250VAC PANEL MOUNT WITH THREADS BAG
| Part | Actuator Length [x] | Circuit | Panel Cutout Dimensions [diameter] | Bushing Thread | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Current Rating (Amps) | Switch Function | Termination Style | Voltage Rating - DC | Electrical Life | Voltage Rating - AC | Features | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 16.5 mm | DPDT | 6.5 mm | 1/4-40 | -30 ░C | 85 °C | Locking Lever | 4 A 6 A | On-On | Solder Lug | 30 V | 50000 Cycles | 125 V | Sealed - Flux Protection | Non-Illuminated |
 Nidec Components Corporation | 16.5 mm | DPDT | 6.5 mm | 1/4-40 | -30 ░C | 85 °C | Locking Lever | 25 mA | On-On | Solder Lug | 20 V | 50000 Cycles | Sealed - Flux Protection | Non-Illuminated |
