D15S91 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

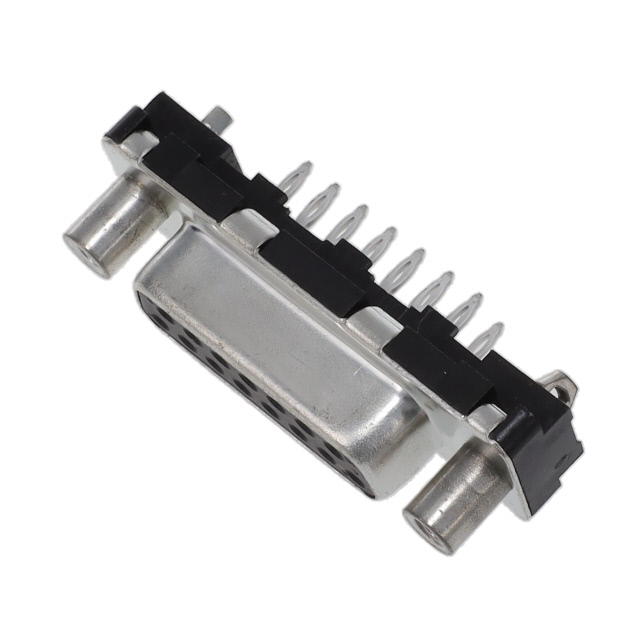

CONN D-SUB RCPT 15P VERT PRESS
| Part | Voltage Rating | Mounting Type | Flange Feature | Contact Finish | Contact Finish Thickness | Contact Type | Material Flammability Rating | Color | Current Rating (Amps) | Number of Positions | Dielectric Material | Connector Type | Shell Size, Connector Layout | Number of Rows | Contact Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (Unthreaded) | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | |||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (4-40) | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (4-40) | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | Steel Tin-Nickel Plated | ||
 Amphenol ICC (FCI) | 300 VDC | Through Hole | Female Screwlock (4-40) Mating Side | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (M3) | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | |||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (M3) | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | |||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (M3) | Gold | Flash | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | Steel Tin-Nickel Plated | ||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Female Screwlock (M3) Mating Side | Gold | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | 0.76 Ám | 30 Áin | ||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Female Screwlock (4-40) Mating Side | Gold | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | 1.27 µm | 50 µin | ||
Amphenol ICC (FCI) | 300 VDC | Through Hole | Housing/Shell (4-40) | Gold | Signal | UL94 V-0 | Black | 5 A | 15 | Polybutylene Terephthalate (PBT) | Receptacle Female Sockets | 2 | 2 | Phosphor Bronze | Press-Fit | -55 °C | 125 °C | D-Sub | 0.76 Ám | 30 Áin |
