5240F1 Series
Manufacturer: Belden Inc.
Beta
⌘K

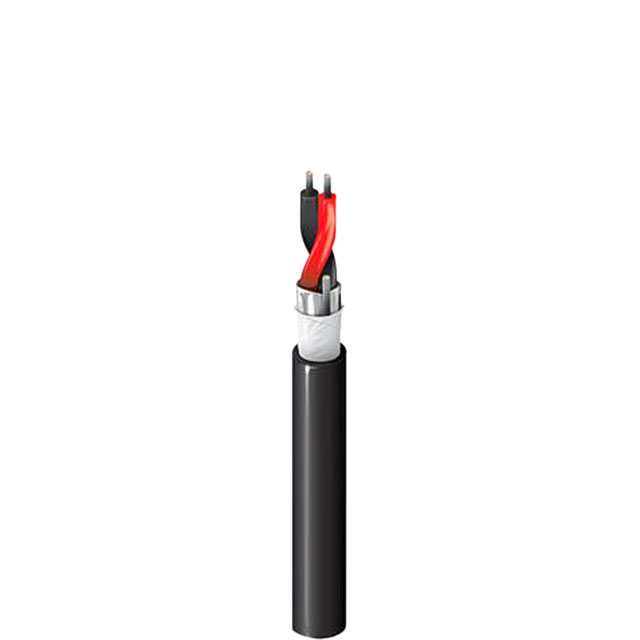

CABLE 2COND 16AWG BLK SHLD
| Part | Shield Coverage | Shield Material | Shield Type | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Length | Length | Voltage | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Cable Type | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation | Jacket (Insulation) Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Foil | Direct Burial Drain Wire Ripcord UV Resistant Water-Blocked | 0.94 mm | 0.037 in | Black | 304.8 m | 1000 ft | 300 VDC | Copper Tinned | 7 | 24 AWG | -30 ░C | 105 ░C | Security Sound | Multi-Conductor | 2 | 0.254 in | 6.45 mm | 16 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
