392-030 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

...

Part	Material - Insulation	Termination Rows [custom]	Card Type	Gender	Contact Type	Termination	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Contact Material	Pitch	Pitch	Color	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Read Out	Mounting Type	Number of Positions/Bay/Row	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Number of Rows	Features

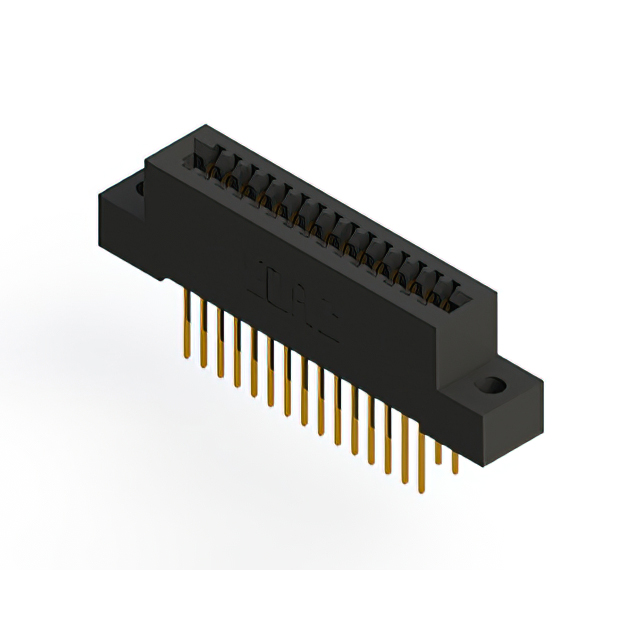

EDAC Inc. 392-030-523-202	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Solder	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	15	Gold	30	0.25 Ám	10 Áin

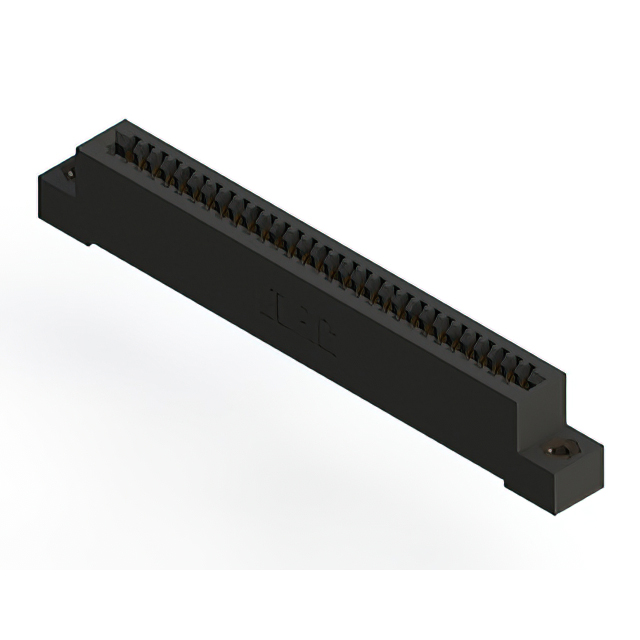

EDAC Inc. 392-030-524-108	Polyester Thermoplastic		Non Specified - Single Edge	Female	Cantilever	Solder	4-40 Flush Mount Threaded Insert Top Opening				Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Through Hole	30	Gold	30	0.25 Ám	10 Áin	1	1

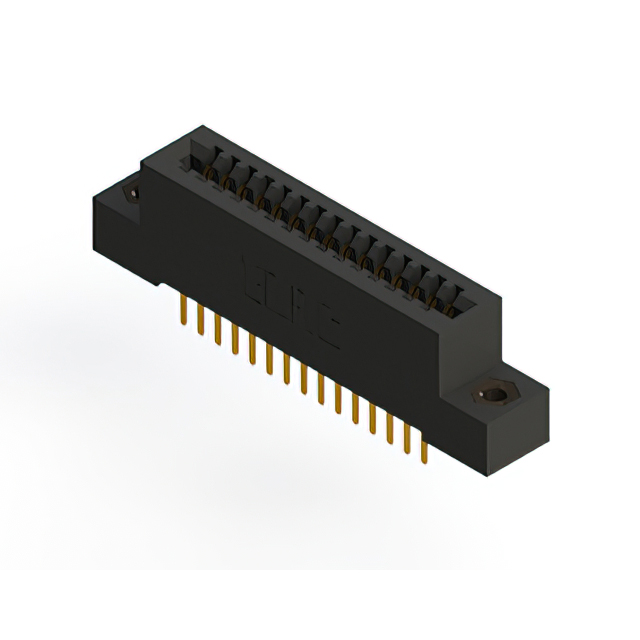

EDAC Inc. 392-030-520-207	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Solder	Flush Mount M3 Threaded Insert Top Opening			2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	15	Gold	30	0.25 Ám	10 Áin
EDAC Inc. 392-030-523-203	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Solder	Floating Bobbin Flush Mount	2.95 mm	0.116 "	2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	15	Gold	30	0.25 Ám	10 Áin

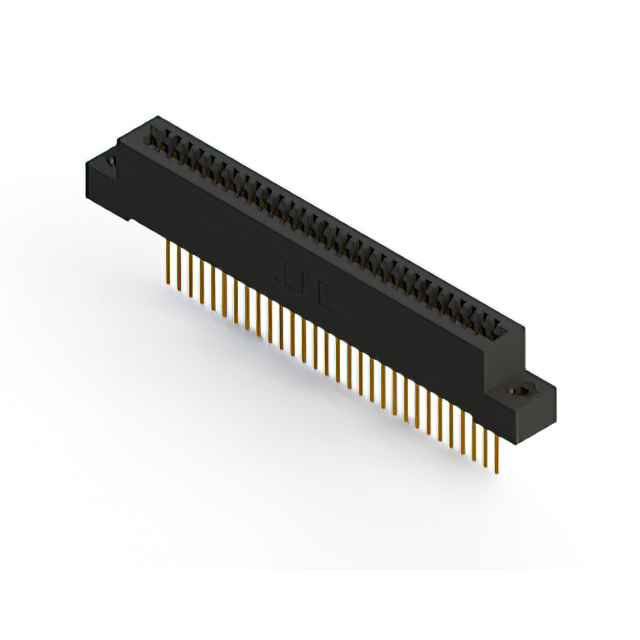

EDAC Inc. 392-030-541-107	Polyester Thermoplastic		Non Specified - Single Edge	Female	Cantilever	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening				Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	Through Hole	30	Gold	30	0.25 Ám	10 Áin	1	1

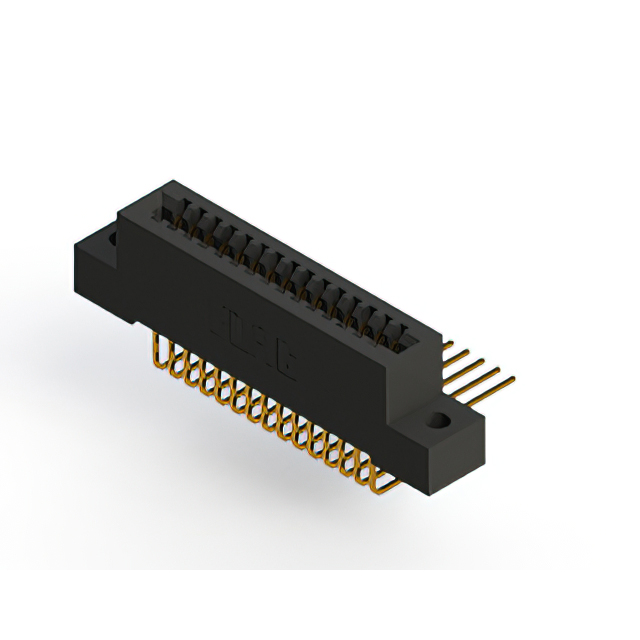

EDAC Inc. 392-030-558-202	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Solder Wire Wrap	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Right Angle Through Hole	15	Gold	30	0.25 Ám	10 Áin

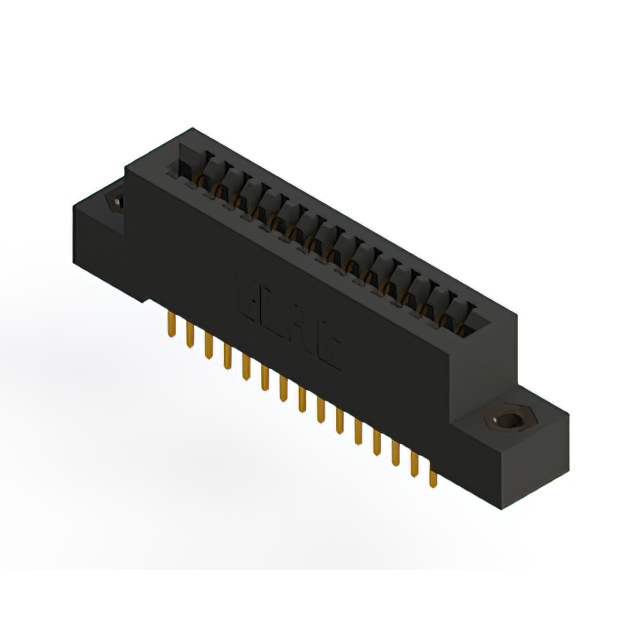

EDAC Inc. 392-030-521-207	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Solder	Flush Mount M3 Threaded Insert Top Opening			2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	15	Gold	30	0.25 Ám	10 Áin

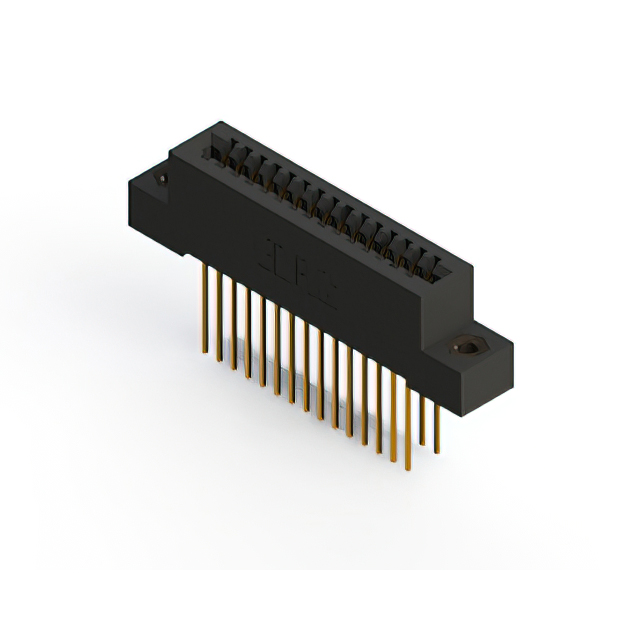

EDAC Inc. 392-030-541-207	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Wire Wrap	Flush Mount M3 Threaded Insert Top Opening			2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	15	Gold	30	0.25 Ám	10 Áin

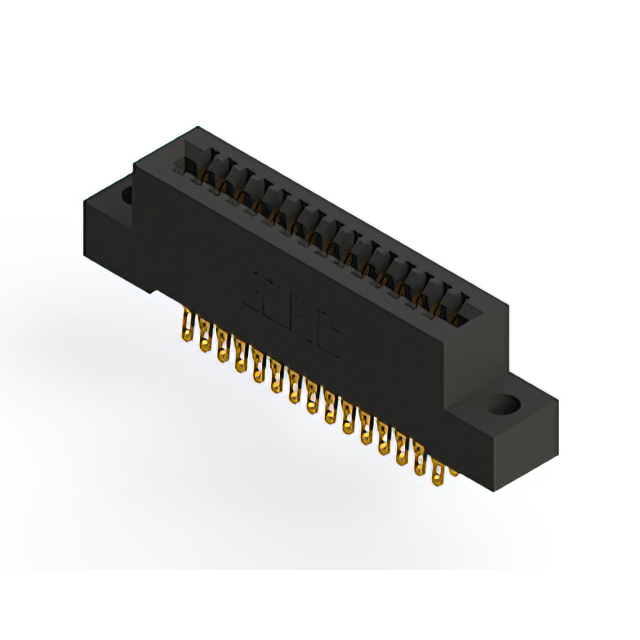

EDAC Inc. 392-030-555-204	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "	2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Board Edge Straddle Mount	15	Gold	30	0.25 Ám	10 Áin			Card Extender

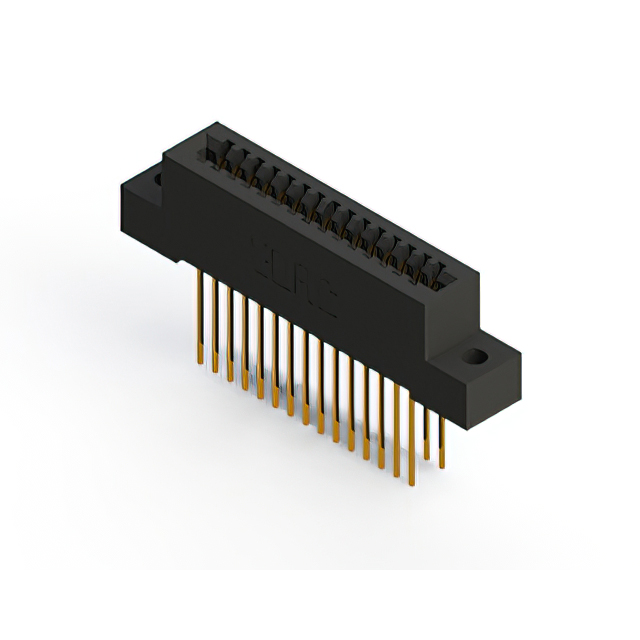

EDAC Inc. 392-030-542-202	Polyester Thermoplastic	2	Non Specified - Dual Edge	Female	Cantilever	Wire Wrap	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	2	Copper Alloy	0.1 "	2.54 mm	Black	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Through Hole	15	Gold	30	0.25 Ám	10 Áin
