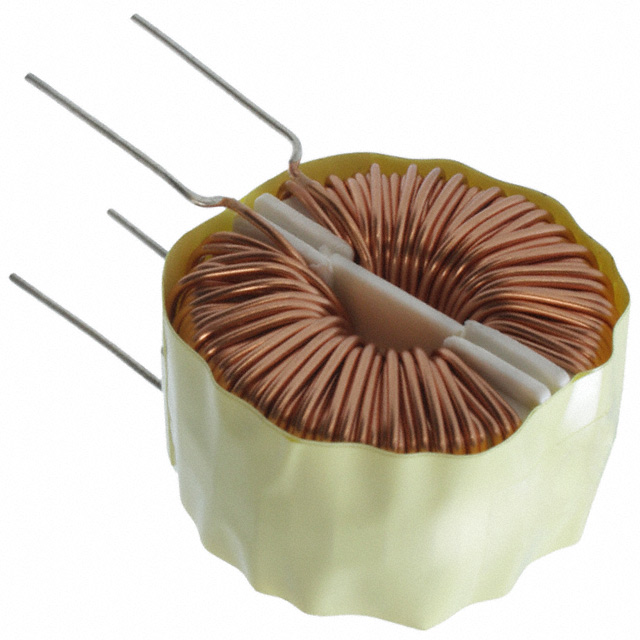

7122 Series
Manufacturer: Bourns Inc.
Beta
⌘K
CMC 25.5MH 4A 2LN TH
| Part | DC Resistance (DCR) (Max) [Max] | Height (Max) [z] | Height (Max) [Max] [z] | Package / Case | Current Rating (Max) [Max] | Inductance @ Frequency | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Lines | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 130 mOhm | 31.24 mm | 1.23 in | Vertical No Base 4 PC Pin | 4 A | 25.5 mH | 1.23 in | 22.86 mm | 0.9 in | 31.24 mm | -55 C | 105 ░C | 2 | Through Hole |
