623-025 Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB PLUG 25POS R/A SOLDER

Part	Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Number of Positions	Connector Type	Contact Type	Termination	Connector Style	Flange Feature	Flange Feature	Current Rating (Amps)	Backset Spacing	Backset Spacing	Shell Material, Finish	Mounting Type	Features	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Contact Finish Thickness
EDAC Inc. 623-025-361-532	Black	Polyester Thermoplastic	-55 C	125 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell	4-40	3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	0.38 µm	15 µin	Gold	2	B DB	3

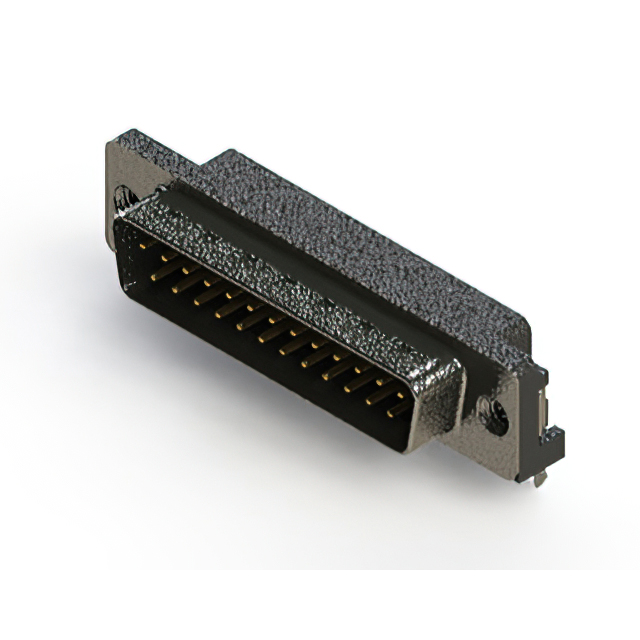

EDAC Inc. 623-025-661-032	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell	4-40	3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	0.76 Ám	30 Áin	Gold	2	B DB	3
EDAC Inc. 623-025-661-532	Black	Polyester Thermoplastic	-55 C	125 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell	4-40	3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	0.76 Ám	30 Áin	Gold	2	B DB	3

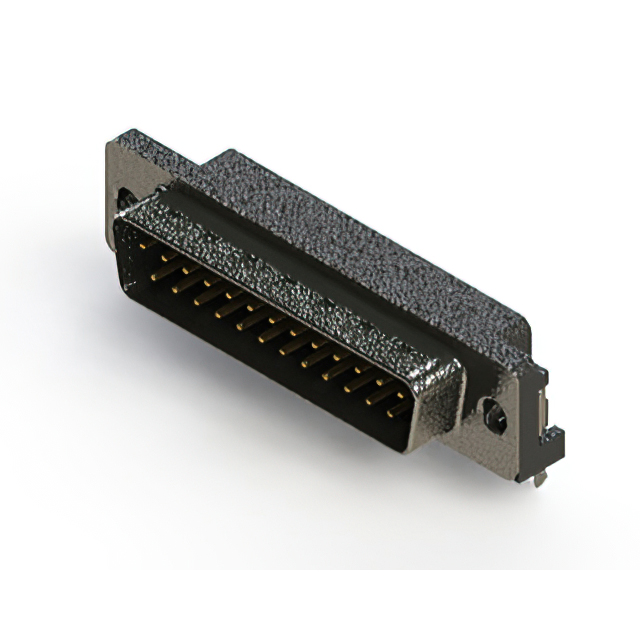

EDAC Inc. 623-025-261-031	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell (Unthreaded)		3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0			Gold	2	B DB	3	Flash
EDAC Inc. 623-025-361-032	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell	4-40	3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	0.38 µm	15 µin	Gold	2	B DB	3
EDAC Inc. 623-025-261-032	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell	4-40	3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0			Gold	2	B DB	3	Flash
EDAC Inc. 623-025-361-035	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	Housing/Shell (M3)		3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	0.38 µm	15 µin	Gold	2	B DB	3
EDAC Inc. 623-025-261-033	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	4-40 Mating Side Female Screwlock		3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0			Gold	2	B DB	3	Flash
EDAC Inc. 623-025-261-533	Black	Polyester Thermoplastic	-55 C	125 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	4-40 Mating Side Female Screwlock		3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0			Gold	2	B DB	3	Flash

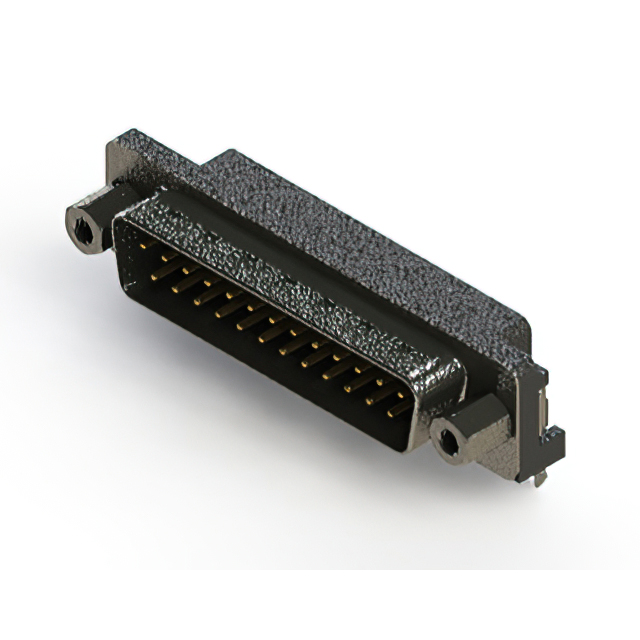

EDAC Inc. 623-025-361-033	Black	Polyester Thermoplastic	-55 C	85 °C	Copper Alloy	25	Plug Male Pins	Signal	Solder	D-Sub	4-40 Mating Side Female Screwlock		3 A	0.197 in	5 mm	Nickel Plated Steel	Board Edge Right Angle Through Hole	Board Lock Grounding Indents Mounting Brackets Shielded	UL94 V-0	0.38 µm	15 µin	Gold	2	B DB	3
