HB15SKW Series

Catalog

SWITCH PUSH SPDT 0.1A 30V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Actuator Marking	Type	Actuator Type	Illumination Type, Color	Circuit	Current Rating (Amps)	Illumination Voltage (Nominal)	Color - Actuator/Cap	Switch Function	Panel Cutout Dimensions [diameter]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage Rating - DC

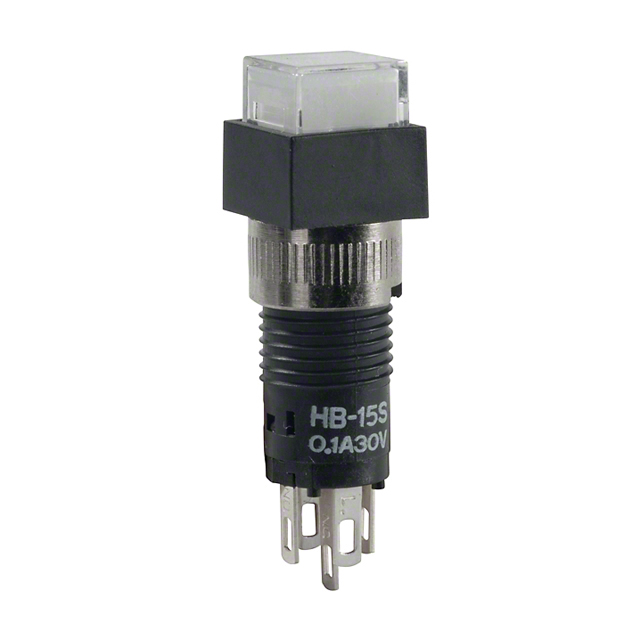

NKK Switches HB15SKW01-6B-JB	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	LED White	SPDT	100 mA	3.3 VDC	Clear	On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-5C-CB	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	LED Red	SPDT	100 mA	2.1 VDC	Red	On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V

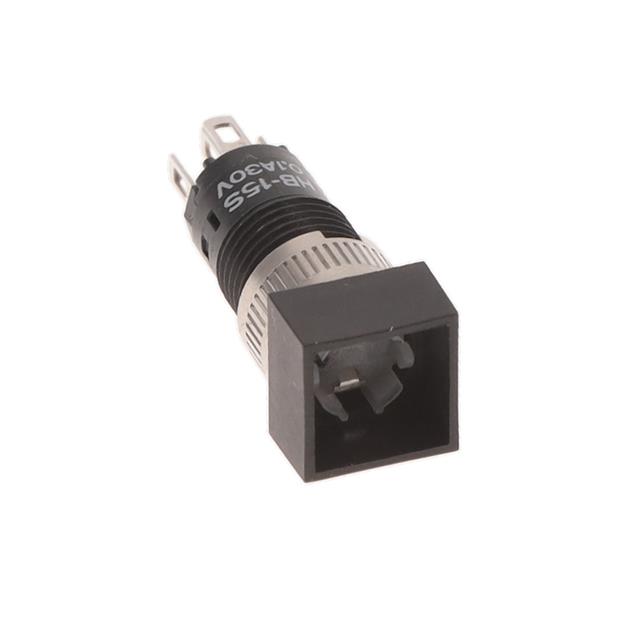

NKK Switches HB15SKW01/U	100000 Cycles	50000 Cycles	30 V	No Marking	Standard	Button Square		SPDT	100 mA			On-Mom	8 mm	Panel Mount Front	70 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-5D-DB	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	Amber LED	SPDT	100 mA	2.05 VDC	Amber	On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V

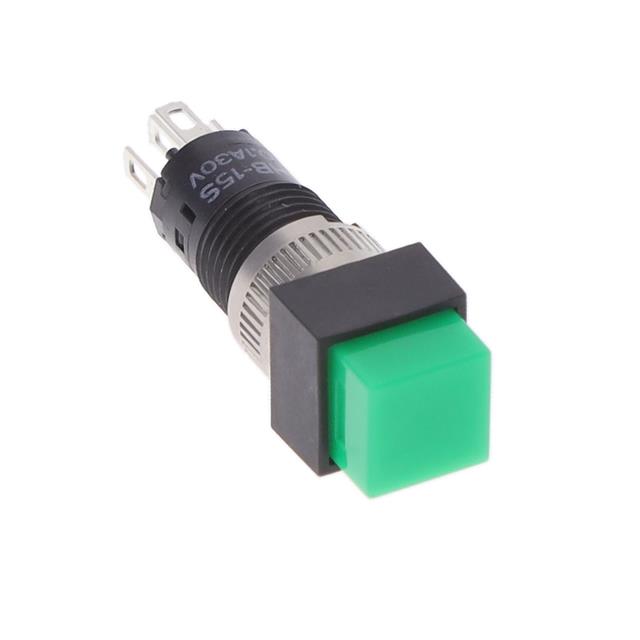

NKK Switches HB15SKW01-F	100000 Cycles	50000 Cycles	30 V	No Marking	Standard	Button Square		SPDT	100 mA		Green	On-Mom	8 mm	Panel Mount Front	70 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-5C-CB/U	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	LED Red	SPDT	100 mA	2.1 VDC		On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-6F-JB	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	Green LED	SPDT	100 mA	3.5 VDC	Clear	On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-E	100000 Cycles	50000 Cycles	30 V	No Marking	Standard	Button Square		SPDT	100 mA		Yellow	On-Mom	8 mm	Panel Mount Front	70 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-5F-AB	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	Green LED	SPDT	100 mA	2.1 VDC	Black	On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V
NKK Switches HB15SKW01-5C-AB	100000 Cycles	50000 Cycles	30 V	No Marking	Illuminated Standard	Button Square	LED Red	SPDT	100 mA	2.1 VDC	Black	On-Mom	8 mm	Panel Mount Front	50 °C	-25 °C	Solder Lug	30 V
