5693 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

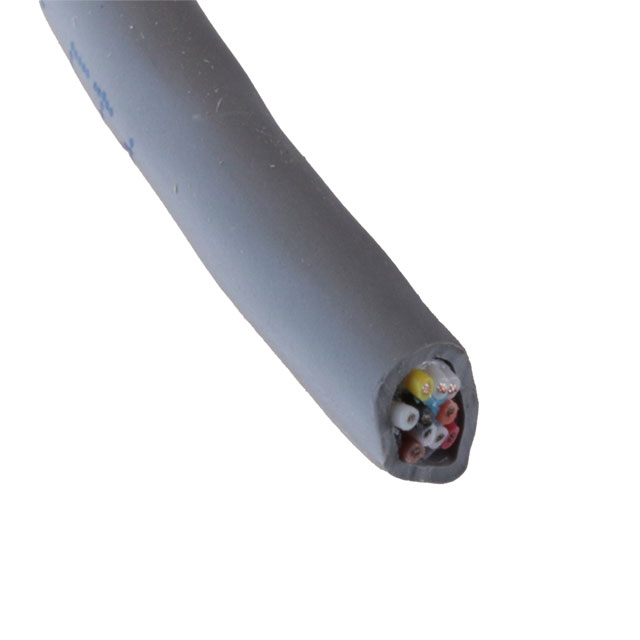

MULTI-CONDUCTOR CABLES 26 AWG 5 CONDUCTOR 300V FOIL SR PVC PVC, 1000 FT SPOOL - SLATE
| Part | Shield Material | Shield Coverage | Wire Gauge | Voltage | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Material | Jacket Color | Conductor Strand [x] | Conductor Strand [x] | Features | Conductor Insulation | Jacket (Insulation) Material | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 26 AWG | 300 VDC | Multi-Pair | 6.25 mm | 0.246 in | 304.8 m | 1000 ft | 10 | -35 °C | 105 ░C | Communication Control | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Slate | 34 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | ||
 ALPHA WIRE | Aluminum | 100 % | 26 AWG | 300 VDC | Multi-Pair | 6.25 mm | 0.246 in | 10 | -35 °C | 105 ░C | Communication Control | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Slate | 34 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | 26 AWG | 300 VDC | Multi-Pair | 6.25 mm | 0.246 in | 10 | -35 °C | 105 ░C | Communication Control | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Copper Tinned | Slate | 34 AWG | 7 | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Foil |
