SML-LX1210 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED RED/YLW CLEAR 1210 SMD

Part	Wavelength - Peak [custom]	Lens Size [x]	Lens Size [y]	Lens Style	Supplier Device Package	Current - Test	Package / Case	Package / Case	Configuration	Lens Color	Millicandela Rating	Mounting Type	Height (Max) [Max] [z]	Lens Transparency	Color	Viewing Angle	Voltage - Forward (Vf) (Typ)	Wavelength - Peak	Current - Test	Millicandela Rating
Lumex Opto/Components Inc. SML-LX1210IYC-TR	585 nm 635 nm	2 mm	2.7 mm	Rectangle with Flat Top	1210	20mA Red 20mA Yellow	1210	3225 Metric	Independent	Colorless	10 mcd 10 mcd	Surface Mount	1.1 mm	Clear	Red Yellow	160 °	2 V 2.1 V

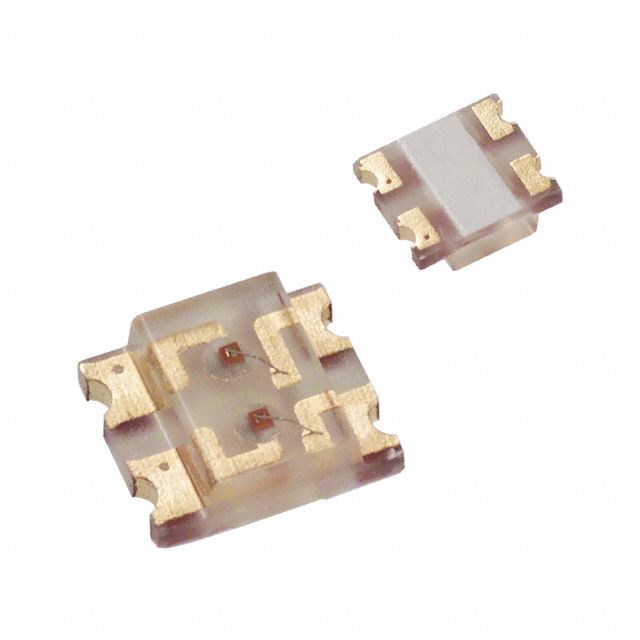

Lumex Opto/Components Inc. SML-LX1210GGC-TR		2 mm	2.7 mm	Rectangle with Flat Top	1210		1210	3225 Metric	Standard	Colorless	10 mcd	Surface Mount	1.1 mm	Clear	Green	160 °	2.2 V	565 nm	20 mA
Lumex Opto/Components Inc. SML-LX1210SRSRC-TR		2 mm	2.7 mm	Rectangle with Flat Top	1210		1210	3225 Metric	Standard	Colorless	15 mcd	Surface Mount	1.1 mm	Clear	Red	160 °	1.7 V	660 nm	20 mA

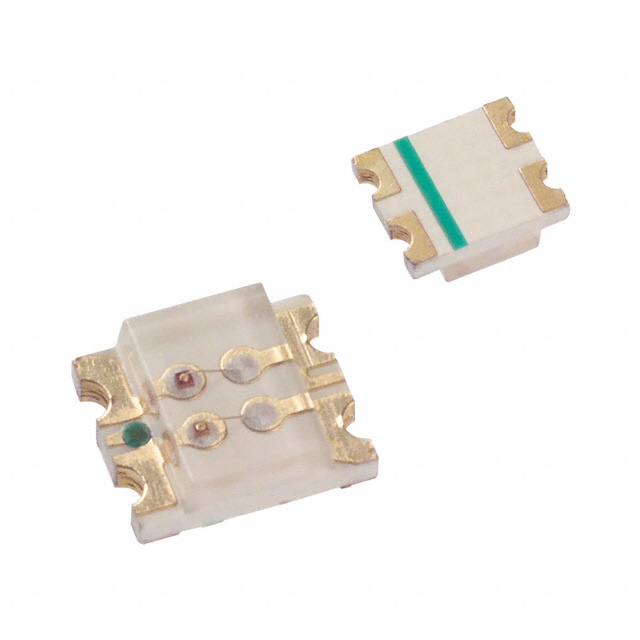

Lumex Opto/Components Inc. SML-LX1210YGC-TR		2 mm	2.7 mm	Rectangle with Flat Top	1210		1210	3225 Metric	Independent	Colorless		Surface Mount	1.1 mm	Clear	Green Yellow	140 °	2.1 V 2.2 V	565 nm 585 nm	20 mA 20 mA	10mcd Green 10mcd Yellow
Lumex Opto/Components Inc. SML-LX1210IGC-TR		2 mm	2.7 mm	Rectangle with Flat Top	1210		1210	3225 Metric	Independent	Colorless		Surface Mount	1.1 mm	Clear	Green Red	160 °	2 V 2.2 V	565 nm 635 nm	20 mA 20 mA	10mcd Green 10mcd Red

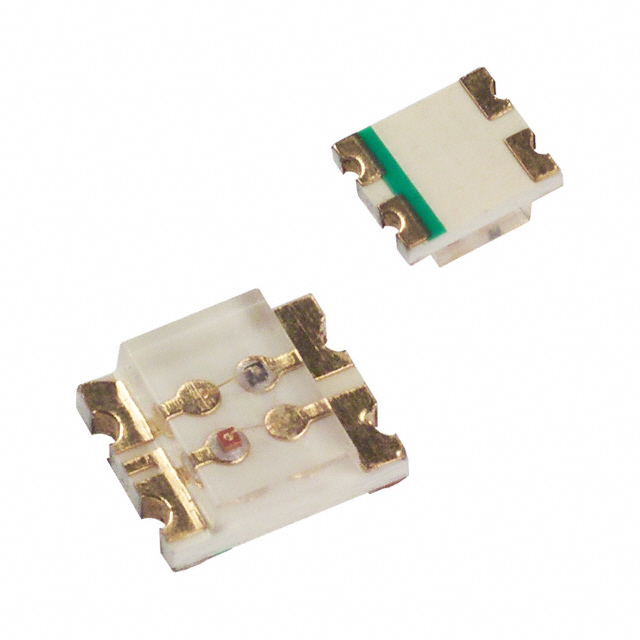

Lumex Opto/Components Inc. SML-LX1210IIC-TR		2 mm	2.7 mm	Rectangle with Flat Top	1210		1210	3225 Metric	Standard	Colorless	10 mcd	Surface Mount	1.1 mm	Clear	Red	160 °	2 V	635 nm	20 mA
Lumex Opto/Components Inc. SML-LX1210SRSGC-TR		2 mm	2.7 mm	Rectangle with Flat Top	1210		1210	3225 Metric	Independent	Colorless		Surface Mount	1.1 mm	Clear	Green Red	160 °	1.7 V 2.2 V	565 nm 660 nm	20 mA 20 mA	10mcd Green 15mcd Red
