APHHS1005 Series

Catalog

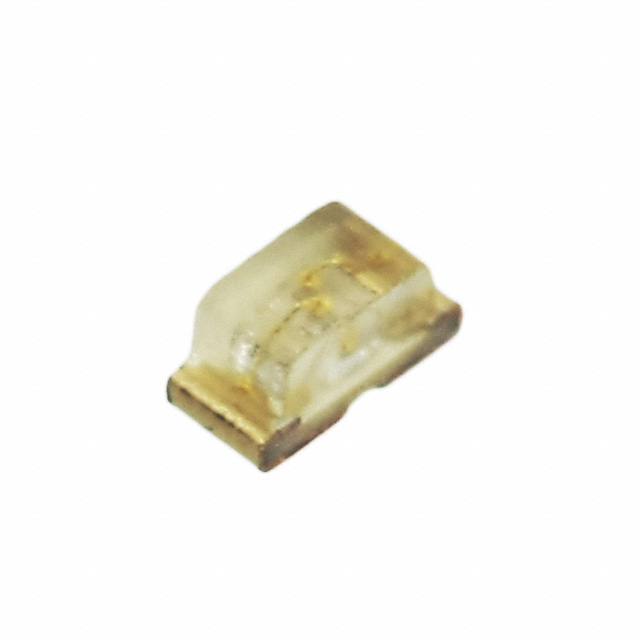

LED BLUE CLEAR CHIP SMD

Part	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Wavelength - Dominant	Height (Max) [z]	Lens Style	Lens Transparency	Configuration	Lens Color	Color	Millicandela Rating	Package / Case	Viewing Angle	Mounting Type	Lens Size [x]	Lens Size [y]	Size / Dimension [x]	Size / Dimension [y]	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Type	Orientation
Kingbright APHHS1005PBC/A	20 mA	468 nm	3.2 V	Chip LED	470 nm	0.6 mm	Rectangle with Flat Top	Clear	Standard	Colorless	Blue	60 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005ZGCK	20 mA	515 nm	3.3 V	Chip LED	525 nm	0.5 mm	Rectangle with Flat Top	Clear	Standard	Colorless	Green	400 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005LCGCK	2 mA		1.9 V	2-SMD	570 nm	0.6 mm	Rectangle with Flat Top	Clear	Independent	Colorless	Green	3.5 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005QBC/D	20 mA	460 nm	3.3 V	Chip LED	465 nm	0.6 mm	Rectangle with Flat Top	Clear	Standard	Colorless	Blue	60 mcd	0402 (1005 Metric)	140 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005SECK	20 mA	610 nm	2.1 V	Chip LED	601 nm	0.6 mm	Rectangle with Flat Top	Clear	Standard	Colorless		150 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm

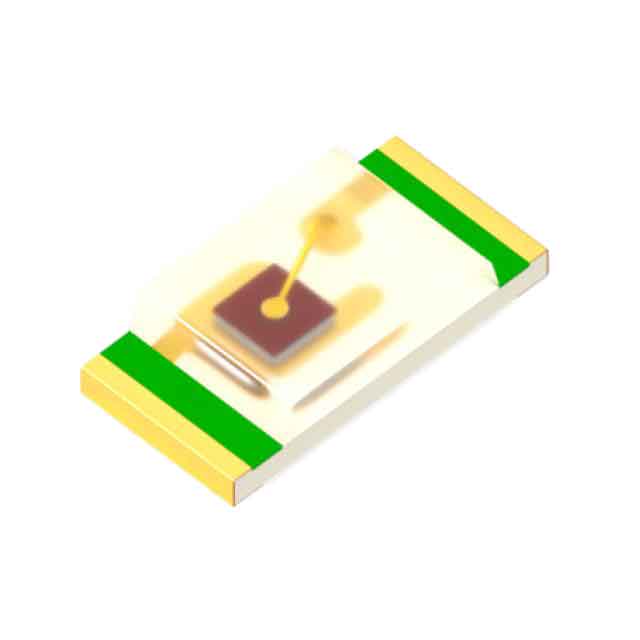

Kingbright APHHS1005CGCK	20 mA		2.1 V	Chip LED	570 nm	0.6 mm	Rectangle with Flat Top	Clear	Standard	Colorless	Green	50 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005LQBC/D-V	2 mA	460 nm	2.65 V	2-SMD	465 nm	0.6 mm	Rectangle with Flat Top	Clear	Independent	Colorless	Blue	15 mcd	0402 (1005 Metric)	140 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005LSECK/J3-PF	2 mA	640 nm	1.8 V	2-SMD	625 nm	0.6 mm	Rectangle with Flat Top	Clear	Independent	Colorless	Red	80 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005VGC/A	20 mA	520 nm	3.2 V	Chip LED	525 nm	0.6 mm	Rectangle with Flat Top	Clear	Standard	Colorless	Green	180 mcd	0402 (1005 Metric)	120 °	Surface Mount	0.8 mm	0.5 mm	1 mm	0.5 mm
Kingbright APHHS1005F3C-70MAV			1.33 V										0402 (1005 Metric)	140 °	Surface Mount					70 mA	5 mW/sr	85 °C	-40 C	940 nm	Infrared (IR)	Top View
