7WBD3305 Series

2-Bit Translating Bus Switch

Catalog

2-Bit Translating Bus Switch

Part	Package / Case	Voltage Supply Source	Supplier Device Package	Mounting Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Independent Circuits	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Package / Case [y]	Package / Case [y]
ON Semiconductor 7WBD3305MUTAG	8-UFDFN	Single Supply	8-UDFN (1.8x1.2)	Surface Mount	1 x 1:1	-55 °C	125 °C	2	5.5 V	4 V	Bus Switch
ON Semiconductor 7WBD3305USG	8-VFSOP	Single Supply	US8	Surface Mount	1 x 1:1	-55 °C	125 °C	2	5.5 V	4 V	Bus Switch	2.3 mm	0.091 in

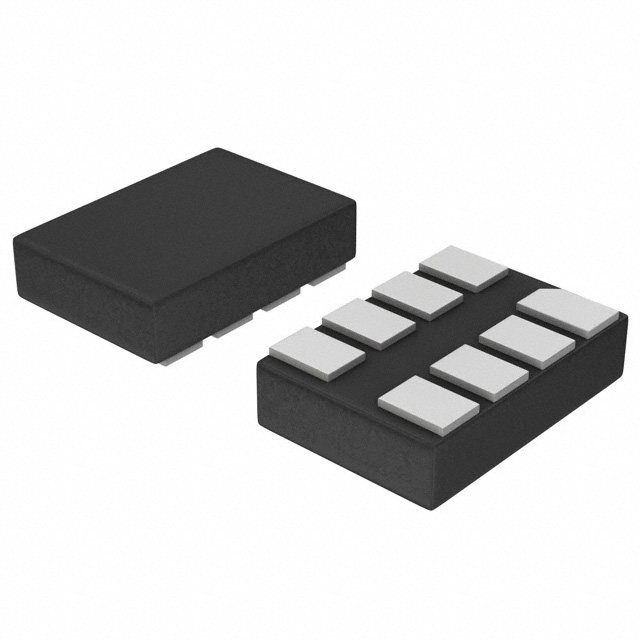

ON Semiconductor 7WBD3305BMX1TCG	8-XFLGA	Single Supply	8-ULLGA (1.6x1)	Surface Mount	1 x 1:1	-55 °C	125 °C	2	5.5 V	4 V	Bus Switch

2-Bit Translating Bus Switch

• High Speed: tPD = 0.25 ns (Max) @ VCC = 4.5 V

• 3 ohms Switch Connection Between 2 Ports

• Power Down Protection Provided on Inputs

• Zero Bounce

• TTLCompatible Control Inputs

• UltraSmall PbFree Packages

• These are PbFree Devices

The 7WBD3305 is an advanced high-speed low-power 2-bit translating bus switch in ultra-small footprints.
