ACA-20PC Series

Catalog

AMMETER 0-19.99A LED PANEL MOUNT

Part	Operating Temperature [Max]	Weight	Weight	Features	Display Characters - Height [custom]	Display Characters - Height [custom]	Termination Style	Measuring Range [Max]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Characters Per Row [custom]	Measuring Type	Display Type	Type
Murata Electronics ACA-20PC-2-AC1-BL-C	60 °C	30.84 g	0.068 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	19.99 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	Blue Characters LED	Ammeter
Murata Electronics ACA-20PC-3-AC1-BL-C	60 °C	37.19 g	0.082 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	50 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	Blue Characters LED	Ammeter
Murata Electronics ACA-20PC-3-AC1-PGL-C	60 °C	37.19 g	0.082 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	50 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	Green Characters LED	Ammeter
Murata Electronics ACA-20PC-2-DC1-RL-C	60 °C	30.84 g	0.068 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	19.99 A	33.93 mm	21.29 mm	40 VDC	4.75 V	Panel Mount - Bezel	3.5	Current	LED Red Characters	Ammeter
Murata Electronics ACA-20PC-2-AC1-PGL-C	60 °C	30.84 g	0.068 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	19.99 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	Green Characters LED	Ammeter
Murata Electronics ACA-20PC-3-DC1-RL-C	60 °C	37.19 g	0.082 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	50 A	33.93 mm	21.29 mm	40 VDC	4.75 V	Panel Mount - Bezel	3.5	Current	LED Red Characters	Ammeter

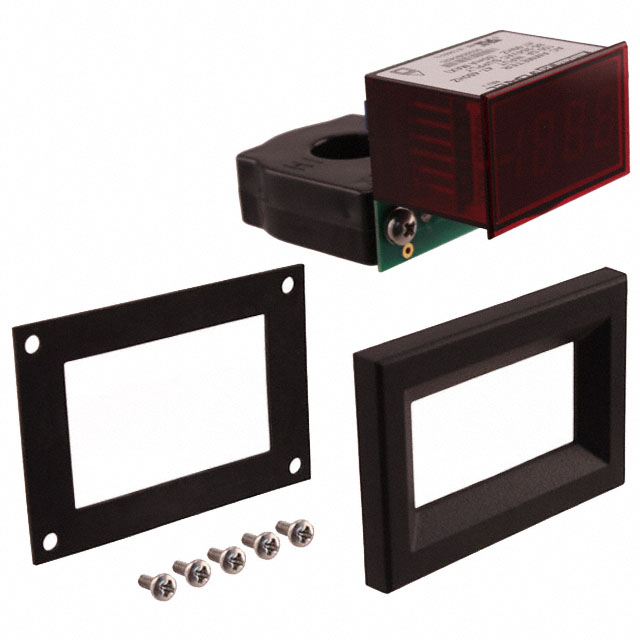

Murata Electronics ACA-20PC-4-AC1-RL-C	60 °C	43.09 g	0.095 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	100 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	LED Red Characters	Ammeter
Murata Electronics ACA-20PC-4-AC1-RL-L-C	60 °C	43.09 g	0.095 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	100 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	LED Red Characters	Ammeter

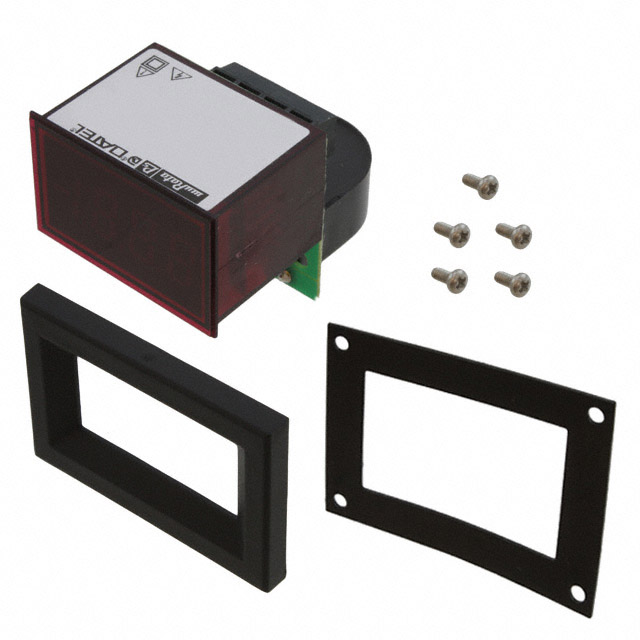

Murata Electronics ACA-20PC-2-AC1-RL-C	60 °C	30.84 g	0.068 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	19.99 A	33.93 mm	21.29 mm	264 VAC	85 VAC/DC	Panel Mount - Bezel	3.5	Current	LED Red Characters	Ammeter
Murata Electronics ACA-20PC-4-DC1-RL-C	60 °C	43.09 g	0.095 lb	Built In Current Transformer (Primary)	0.37 in	9.4 mm	Screw Terminal	100 A	33.93 mm	21.29 mm	40 VDC	4.75 V	Panel Mount - Bezel	3.5	Current	LED Red Characters	Ammeter
