1838277 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

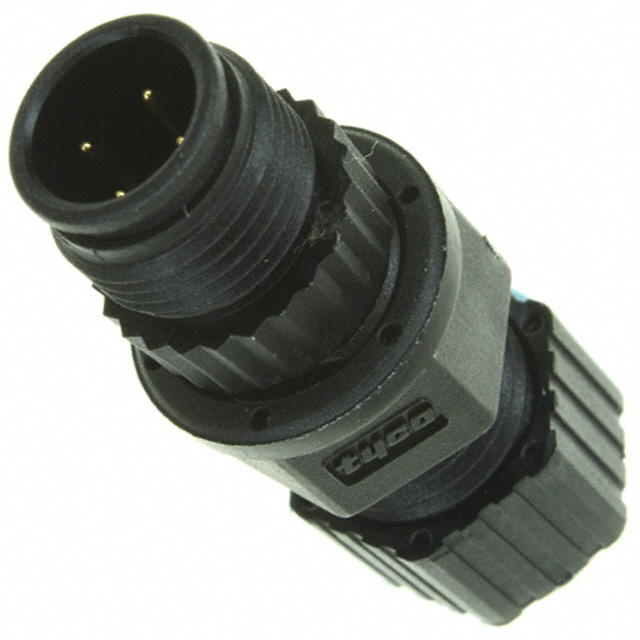

CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Voltage Rating | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Shell Size - Insert | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Primary Material | Shell Material | Mounting Type | Contact Finish - Mating | Applications | Connector Type | Number of Positions | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 250 VAC | Keyed | 90 °C | -25 °C | 5 A | M12-4 | 0.15 µm | 5.9 µin | Plastic | Glass Filled Nylon Polyamide (PA) | Free Hanging (In-Line) | Gold | Automotive Industrial | Male Pins Plug | 4 | IP67 - Dust Tight Waterproof |
