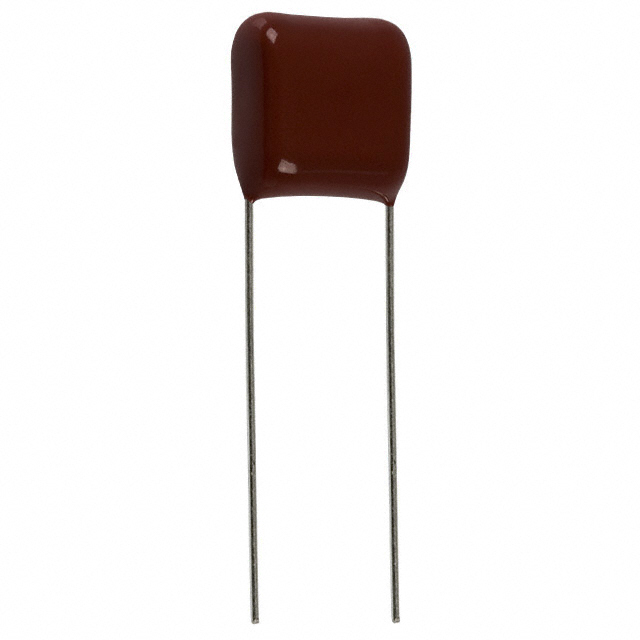

ECQ-E2684 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.68UF 250V PET 10%( 12.3 X 7.3 X 17.7MM) RADIAL 5MM 105°C AMMO

Part	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Lead Spacing	Lead Spacing	Voltage Rating - DC	Capacitance	Termination	Package / Case	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lead Spacing [x]	Lead Spacing [x]
Panasonic Electronic Components ECQ-E2684KB3	General Purpose	0.484 in	12.3 mm	0.287 in	7.3 mm	0.197 "	5 mm	250 V	0.68 µF	PC Pins	Radial	10 %	17.7 mm	0.697 in	Polyester Metallized	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2684KFW	General Purpose	0.728 in	18.5 mm	0.236 "	6 mm	0.394 in	10 mm	250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	105 ░C	18.5 mm	0.728 in
Panasonic Electronic Components ECQ-E2684JB3	General Purpose	0.484 in	12.3 mm	0.287 in	7.3 mm	0.197 "	5 mm	250 V	0.68 µF	PC Pins	Radial	5 %	17.7 mm	0.697 in	Polyester Metallized	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2684RJB	General Purpose	0.484 in	12.3 mm	0.287 in	7.3 mm	0.394 in	10 mm	250 V	0.68 µF	PC Pins	Radial	5 %	17.7 mm	0.697 in	Polyester Metallized	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2684KB	General Purpose	0.484 in	12.3 mm	0.287 in	7.3 mm	0.394 in	10 mm	250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2684KFB	General Purpose	0.728 in	18.5 mm	0.236 "	6 mm	0.394 in	10 mm	250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	105 ░C	18.5 mm	0.728 in

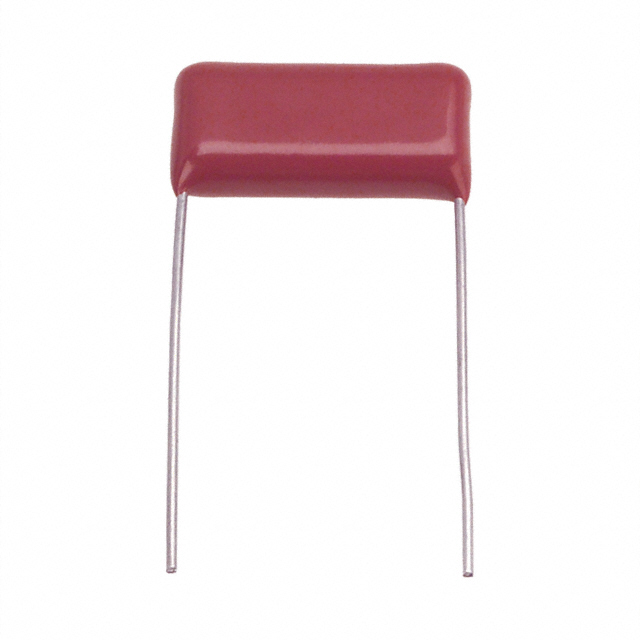

Panasonic Electronic Components ECQ-E2684KS	General Purpose		0.906 " 23 mm		0.295 in 7.5 mm			250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	85 °C	14.5 mm	0.571 "	0.787 in	20 mm
Panasonic Electronic Components ECQ-E2684KF	General Purpose	0.728 in	18.5 mm	0.236 "	6 mm	0.591 in	15 mm	250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	105 ░C	14.5 mm	0.571 "
Panasonic Electronic Components ECQ-E2684KFA	General Purpose							250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	105 ░C
Panasonic Electronic Components ECQ-E2684RKF	General Purpose	0.728 in	18.5 mm	0.236 "	6 mm	0.591 in	15 mm	250 V	0.68 µF	PC Pins	Radial	10 %			Polyester Metallized	Through Hole	-40 C	105 ░C	18.5 mm	0.728 in
