3126-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

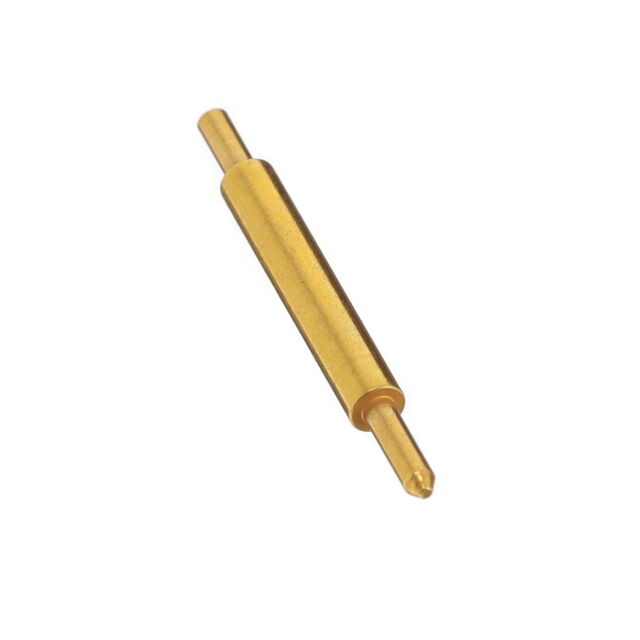

CONN PC PIN CIRC .040DIA GOLD
| Part | Terminal Style | Length - Overall | Length - Overall | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Board Thickness [custom] | Board Thickness [custom] | Termination | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Type | Length - Above Flange | Length - Above Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Single End | 17.35 mm | 0.683 " | 0.043 in | 1.09 mm | 2.87 mm | 0.113 " | Non-Insulated | 20 µin | 0.51 µm | Gold | Through Hole | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | Swage | Brass Alloy | 0.071 in | 1.8 mm | PC Pin | 3.81 mm | 0.15 in |
Mill-Max Manufacturing Corp. | Single End | 17.35 mm | 0.683 " | 0.043 in | 1.09 mm | 2.87 mm | 0.113 " | Non-Insulated | 50 µin | 1.27 µm | Gold | Through Hole | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | Swage | Brass Alloy | 0.071 in | 1.8 mm | PC Pin | 3.81 mm | 0.15 in |
 Mill-Max Manufacturing Corp. | Single End | 17.35 mm | 0.683 " | 0.043 in | 1.09 mm | 2.87 mm | 0.113 " | Non-Insulated | 10 Áin | 0.25 Ám | Gold | Through Hole | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | Swage | Brass Alloy | 0.071 in | 1.8 mm | PC Pin | 3.81 mm | 0.15 in |
Mill-Max Manufacturing Corp. | Single End | 17.35 mm | 0.683 " | 0.043 in | 1.09 mm | 2.87 mm | 0.113 " | Non-Insulated | 200 Áin | 5.08 Ám | Tin-Lead | Through Hole | 0.04 in | 1.02 mm | 0.094 in | 2.39 mm | Swage | Brass Alloy | 0.071 in | 1.8 mm | PC Pin | 3.81 mm | 0.15 in |
