ERJ-S14 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

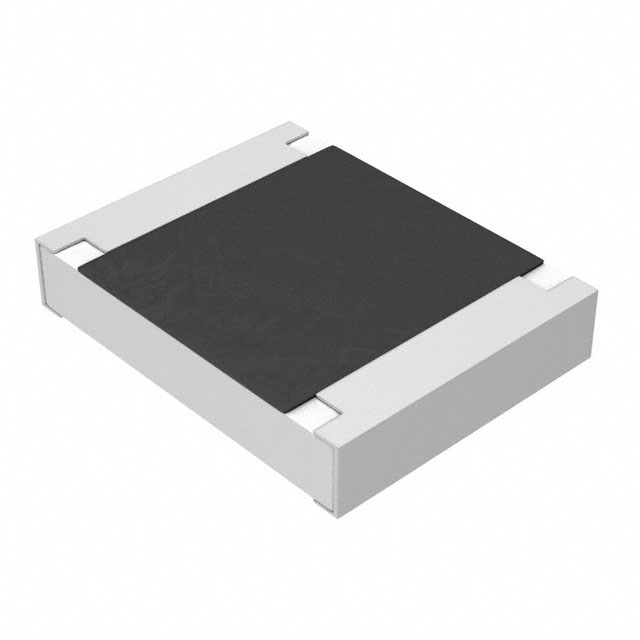

SMD CHIP RESISTOR, 887 KOHM, ± 0.5%, 500 MW, 1210 [3225 METRIC], THICK FILM, SULFUR RESISTANT

...

Part	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Features	Composition	Power (Watts)	Power (Watts)	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Number of Terminations	Supplier Device Package	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Tolerance
Panasonic Industrial Automation Sales ERJ-S14D8873U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	887 kOhms	3.2 mm	2.5 mm	0.126 in	0.098 in
Panasonic Industrial Automation Sales ERJ-S14D2051U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	2.05 kOhms	3.2 mm	2.5 mm	0.126 in	0.098 in
Panasonic Industrial Automation Sales ERJ-S14J161U	200 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	160 Ohms	3.2 mm	2.5 mm	0.126 in	0.098 in	5 %
Panasonic Industrial Automation Sales ERJ-S14D7680U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	768 Ohms	3.2 mm	2.5 mm	0.126 in	0.098 in
Panasonic Industrial Automation Sales ERJ-S14D1961U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	1.96 kOhms	3.2 mm	2.5 mm	0.126 in	0.098 in
Panasonic Industrial Automation Sales ERJ-S14F30R1U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	30.1 Ohms	3.2 mm	2.5 mm	0.126 in	0.098 in	1 %
Panasonic Industrial Automation Sales ERJ-S14D2553U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	255 kOhms	3.2 mm	2.5 mm	0.126 in	0.098 in
Panasonic Industrial Automation Sales ERJ-S14F48R7U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	48.7 Ohms	3.2 mm	2.5 mm	0.126 in	0.098 in	1 %
Panasonic Industrial Automation Sales ERJ-S14F4303U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	430 kOhms	3.2 mm	2.5 mm	0.126 in	0.098 in	1 %
Panasonic Industrial Automation Sales ERJ-S14D4323U	100 ppm/°C	155 °C	-55 °C	AEC-Q200	Anti-Sulfur Automotive AEC-Q200	Thick Film	0.5 W	0.5 W	1210	3225 Metric	0.7 mm	0.028 in	2	1210	432 kOhms	3.2 mm	2.5 mm	0.126 in	0.098 in
