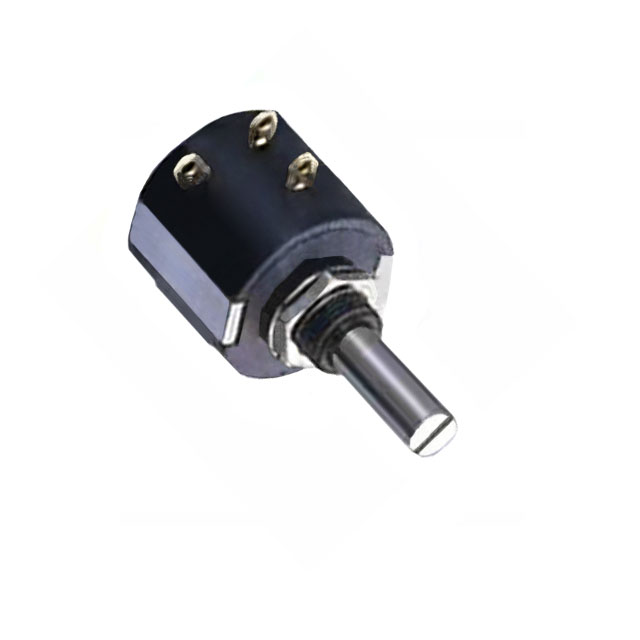

M-22E Series

Manufacturer: Nidec Components Corporation

Catalog

POT 100 OHM 2W WIREWOUND LINEAR

Part	Adjustment Type	Number of Turns	Temperature Coefficient	Rotation	Tolerance	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Resistive Material	Built in Switch	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Mounting Type	Number of Gangs	Actuator Type	Taper	Size - Body [diameter]	Size - Body [diameter]	Termination Style	Bushing Thread	Resistance (Ohms) [custom]	Resistance (Ohms)	Resistance (Ohms)

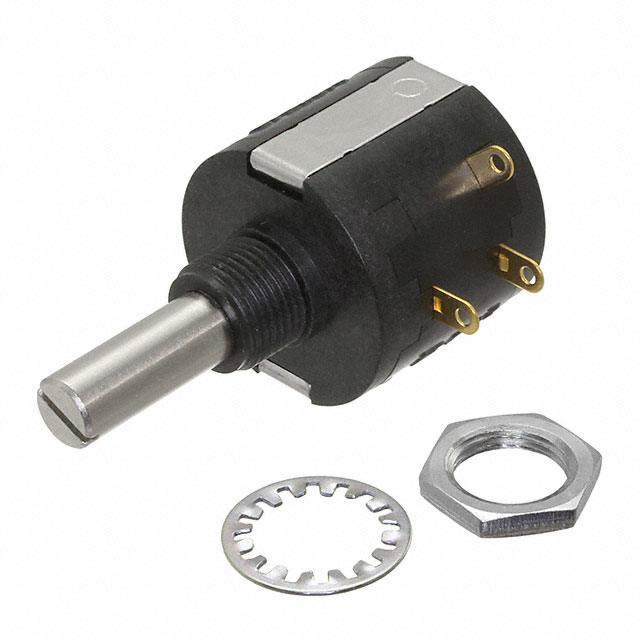

Nidec Components Corporation M-22E10 100	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	3/8-32	100 Ohms
Nidec Components Corporation M-22E10-050 50K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75	50 kOhms
Nidec Components Corporation M-22E10-050 5K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75		5 kOhms
Nidec Components Corporation M-22E10-050 200	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75	200 Ohms

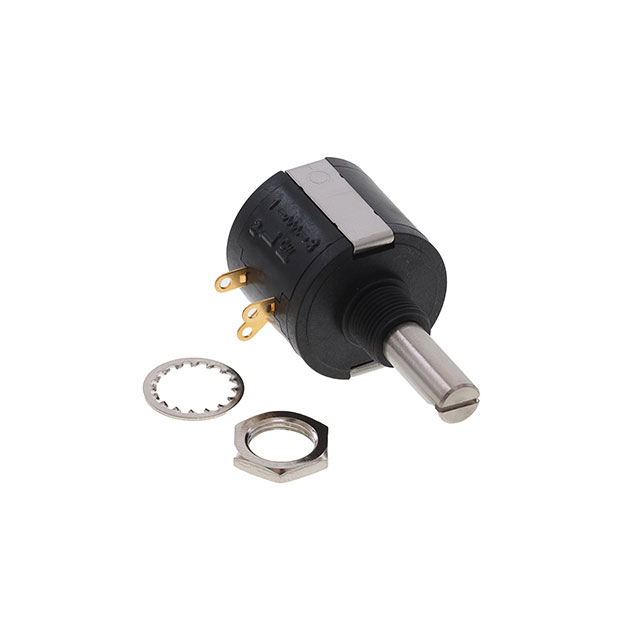

Nidec Components Corporation M-22E10-050 1K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75			1k
Nidec Components Corporation M-22E10-050 100	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75	100 Ohms
Nidec Components Corporation M-22E10-050 10K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75			10k
Nidec Components Corporation M-22E10 2K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	3/8-32		2 kOhms
Nidec Components Corporation M-22E10 20K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	3/8-32		20 kOhms

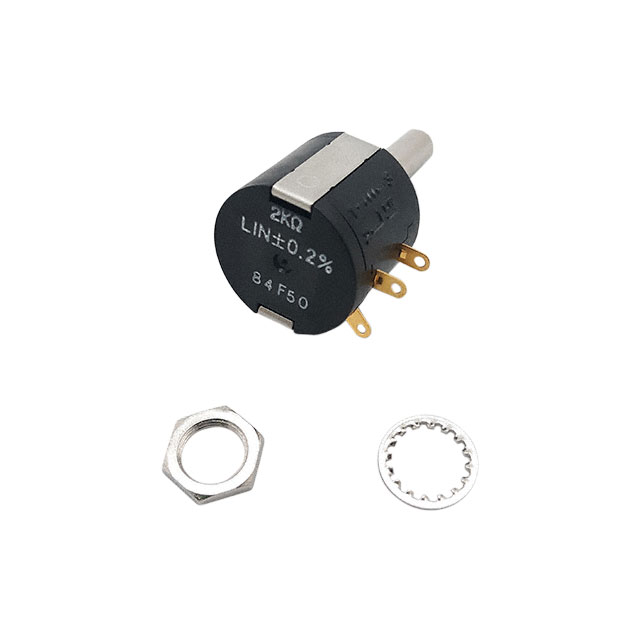

Nidec Components Corporation M-22E10-050 2K	User Defined	10	50 ppm/░C	3600 °	0.2 %	0.906 in	23 mm	2 W	Wirewound	None	6 mm	0.236 in	Panel Mount	1	Slotted	Linear	0.866 "	22 mm	Solder Lug	M9 x 0.75		2 kOhms
