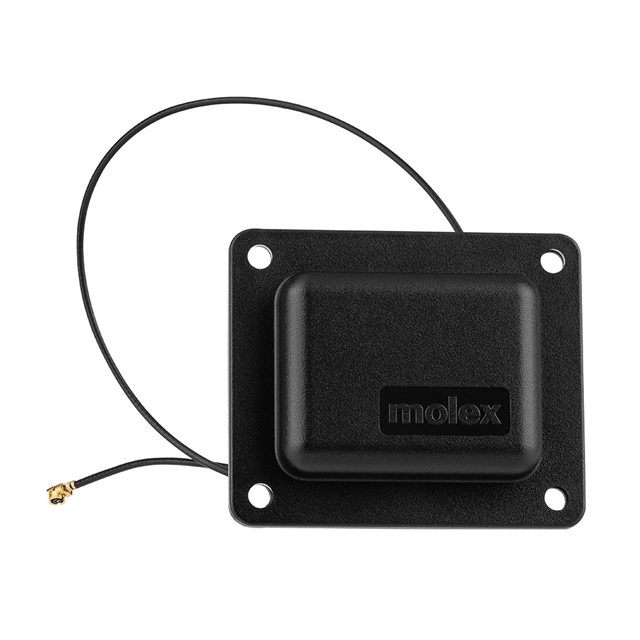

2.4GHz / 5GHz Wi-Fi On-Metal Antenna, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
2.4GHz / 5GHz Wi-Fi On-Metal Antenna, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
2.4GHz / 5GHz Wi-Fi On-Metal Antenna, 300.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
| Part | Height (Max) [Max] | Height (Max) [Max] | Frequency Range [Max] | Frequency Range [Min] | Antenna Type | Frequency Group | Frequency Group [Min] | Frequency Group [Max] | Number of Bands | Features | Features | Termination | Mounting Type | Frequency (Center/Band) | RF Family/Standard | Return Loss | Gain | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.335 " | 8.5 mm | 2.5 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | Module | 4 GHz | 2 GHz | 3 GHz | 2 | 300 mm | Cable | I-PEX MHF1 U.FL (UMCC) | Adhesive | 2.45 GHz 5.5 GHz | 802.15.4 Bluetooth WiFi | -6 dB | 2 dBic 5.5 dBi | Bluetooth DSRC Wi-Fi Zigbee™ |
