109P0824 Series

Catalog

FAN AXIAL 80X15MM 24VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Width [y]	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Fan Type	Bearing Type	Noise	Voltage - Rated	RPM	Approval Agency	Termination	Air Flow	Air Flow	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Features

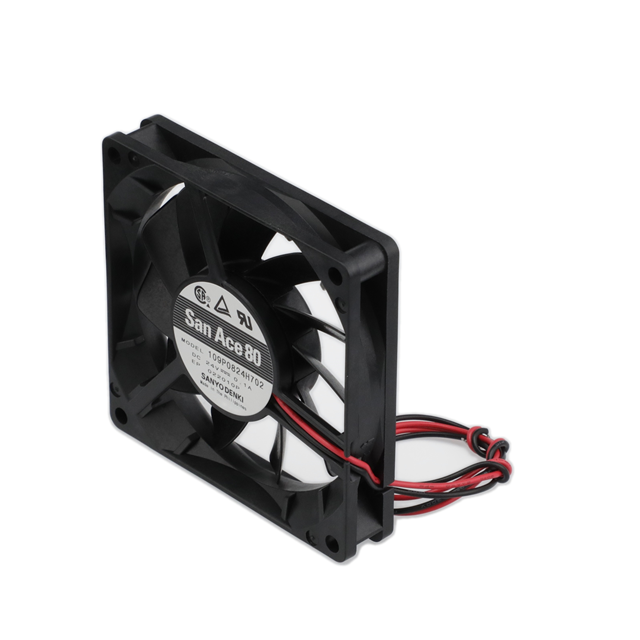

Sanyo Denki America Inc. 109P0824H702	Plastic	27.6 VDC	14	100 mA	Plastic	40000 Hrs	15 mm	68.04 g	0.15 lb	-20 ░C	70 °C	2.4 W	Tubeaxial	Ball	31 dB(A)	24 VDC	3100 RPM	CSA TUV UL	2 Wire Leads	32.1 CFM	0.899 mł/min	80 mm	80 mm	0.118 in H2O	29.4 Pa
Sanyo Denki America Inc. 109P0824M602	Plastic			70 mA	Plastic		20 mm			-20 ░C	70 °C	1.68 W	Tubeaxial	Ball	25 dB(A)	24 VDC	2300 RPM	CSA TUV UL	2 Wire Leads	23.7 CFM	0.664 m³/min	80 mm	80 mm	0.075 in H2O	18.6 Pa	100.7 g	0.222 lb
Sanyo Denki America Inc. 109P0824H7D01	Plastic	27.6 VDC	14	100 mA	Plastic	40000 Hrs	15 mm	68.04 g	0.15 lb	-20 ░C	70 °C	2.4 W	Tubeaxial	Ball	31 dB(A)	24 VDC	3100 RPM	CSA TUV UL	3 Wire Leads	32.1 CFM	0.899 mł/min	80 mm	80 mm	0.118 in H2O	29.4 Pa			Locked Rotor Sensor
Sanyo Denki America Inc. 109P0824M702	Plastic	27.6 VDC	14	50 mA	Plastic		15 mm	68.04 g	0.15 lb	-20 ░C	70 °C	1.2 W	Tubeaxial	Ball	21 dB(A)	24 VDC	2000 RPM	CSA TUV UL	2 Wire Leads	20.1 CFM	0.563 m³/min	80 mm	80 mm	0.051 in H2O	12.7 Pa
Sanyo Denki America Inc. 109P0824H601	Plastic			120 mA	Plastic		20 mm			-20 ░C	70 °C	2.88 W	Tubeaxial	Ball	31 dB(A)	24 VDC	2900 RPM	CSA TUV UL	3 Wire Leads	29.7 CFM	0.832 mł/min	80 mm	80 mm	0.118 in H2O	29.4 Pa	100.7 g	0.222 lb	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0824M7D01	Plastic	27.6 VDC	14	50 mA	Plastic		15 mm	68.04 g	0.15 lb	-20 ░C	70 °C	1.2 W	Tubeaxial	Ball	21 dB(A)	24 VDC	2000 RPM	CSA TUV UL	3 Wire Leads	20.1 CFM	0.563 m³/min	80 mm	80 mm	0.051 in H2O	12.7 Pa			Locked Rotor Sensor

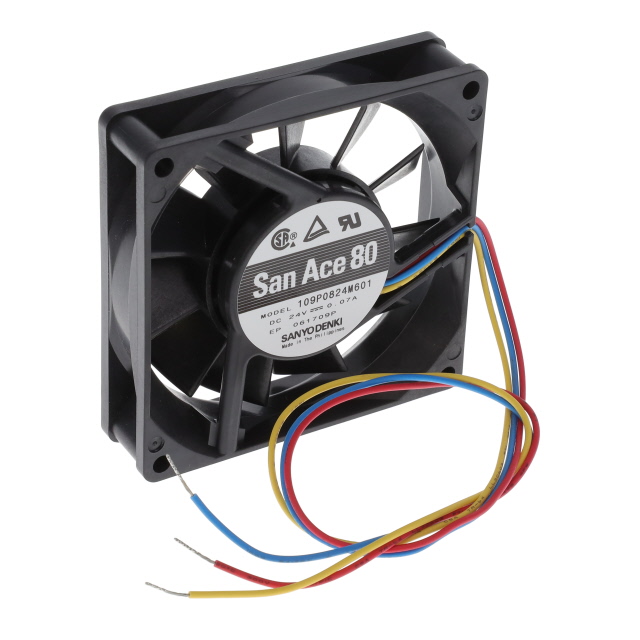

Sanyo Denki America Inc. 109P0824M601	Plastic			70 mA	Plastic		20 mm			-20 ░C	70 °C	1.68 W	Tubeaxial	Ball	25 dB(A)	24 VDC	2300 RPM	CSA TUV UL	3 Wire Leads	23.7 CFM	0.664 m³/min	80 mm	80 mm	0.075 in H2O	18.6 Pa	100.7 g	0.222 lb	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0824M701	Plastic	27.6 VDC	14	50 mA	Plastic		15 mm	68.04 g	0.15 lb	-20 ░C	70 °C	1.2 W	Tubeaxial	Ball	21 dB(A)	24 VDC	2000 RPM	CSA TUV UL	3 Wire Leads	20.1 CFM	0.563 m³/min	80 mm	80 mm	0.051 in H2O	12.7 Pa			Locked Rotor Protection Speed Sensor (Tach)

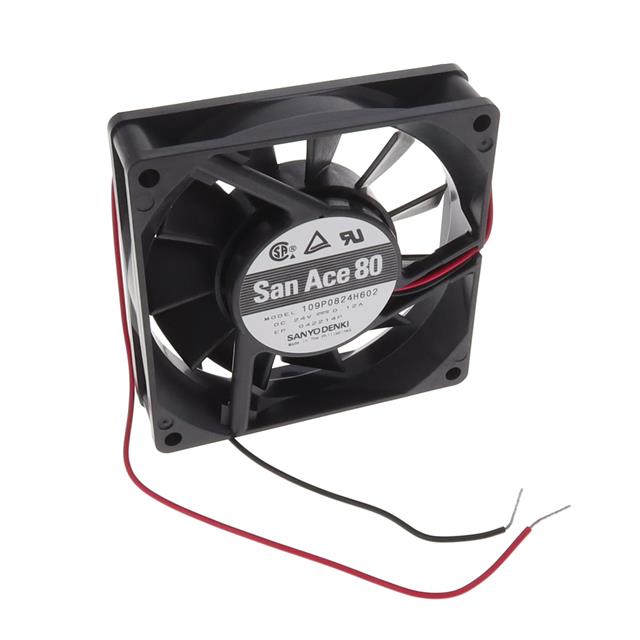

Sanyo Denki America Inc. 109P0824H602	Plastic			120 mA	Plastic		20 mm			-20 ░C	70 °C	2.88 W	Tubeaxial	Ball	31 dB(A)	24 VDC	2900 RPM	CSA TUV UL	2 Wire Leads	29.7 CFM	0.832 mł/min	80 mm	80 mm	0.118 in H2O	29.4 Pa	100.7 g	0.222 lb
