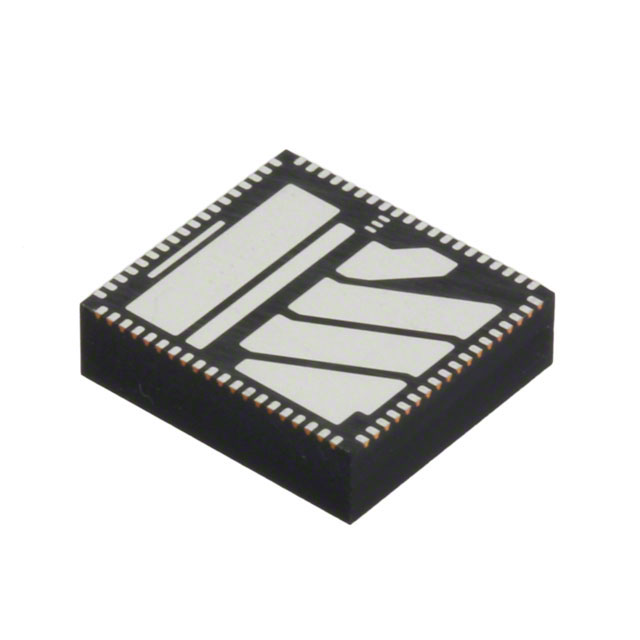

EN2390 Series
Manufacturer: Altera
Beta
⌘K
DC DC CONVERTER 0.75-3.3V
| Part | Package / Case | Current - Output (Max) [Max] | Number of Outputs | Features | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Applications | Type | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Supplier Device Package | Voltage - Input (Min) [Min] | Control Features | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Altera | 76-PowerBFQFN Module | 9 A | 1 | OTP Remote On/Off SCP UVLO | 89 % | 85 °C | -40 C | Surface Mount | 10 mm | 11 mm | 3 mm | 0.43 " | 0.39 in | 0.12 " | ITE (Commercial) | Non-Isolated PoL Module | 0.75 V | 3.3 V | 76-QFN (11x10) | 4.5 V | Active High Enable | 14 V |
Altera | 76-PowerBFQFN Module | 9 A | 1 | OTP Remote On/Off SCP UVLO | 89 % | 85 °C | -40 C | Surface Mount | 10 mm | 11 mm | 3 mm | 0.43 " | 0.39 in | 0.12 " | ITE (Commercial) | Non-Isolated PoL Module | 0.75 V | 3.3 V | 76-QFN (11x10) | 4.5 V | Active High Enable | 14 V |
