853-99 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RCPT 10P 0.05 TIN-LEAD SMD

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Termination	Material Flammability Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Contact Finish - Mating	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Rows [custom]	Contact Finish - Post	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Post

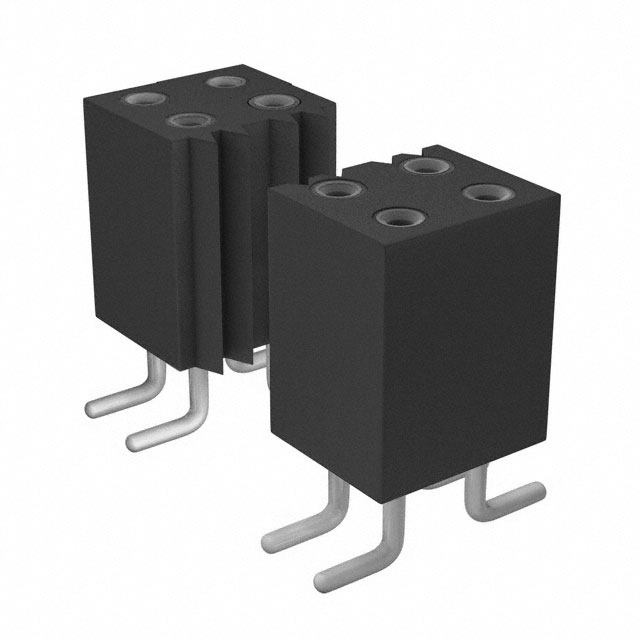

Mill-Max Manufacturing Corp. 853-99-010-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	5.25 mm	0.207 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Surface Mount	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	10	2	Tin-Lead

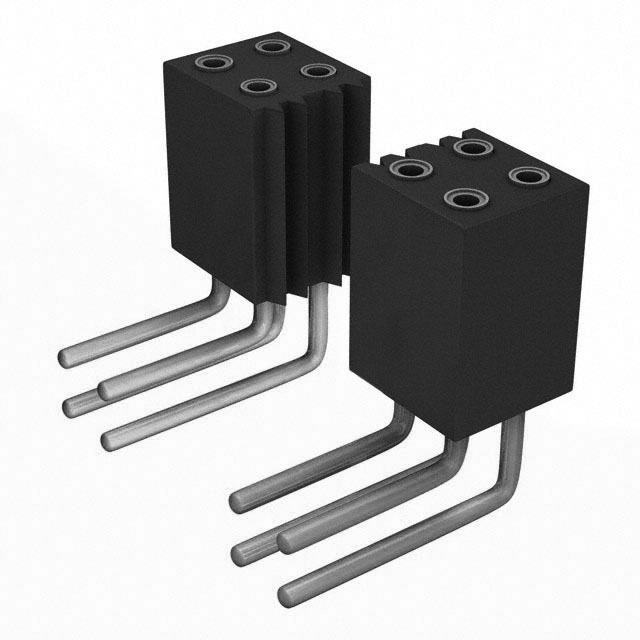

Mill-Max Manufacturing Corp. 853-99-016-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	3.05 mm	0.12 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Right Angle Through Hole	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	16	2	Tin-Lead	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-042-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	5.25 mm	0.207 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Surface Mount	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	42	2	Tin-Lead
Mill-Max Manufacturing Corp. 853-99-060-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	3.05 mm	0.12 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Right Angle Through Hole	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	60	2	Tin-Lead	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-020-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	5.25 mm	0.207 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Surface Mount	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	20	2	Tin-Lead

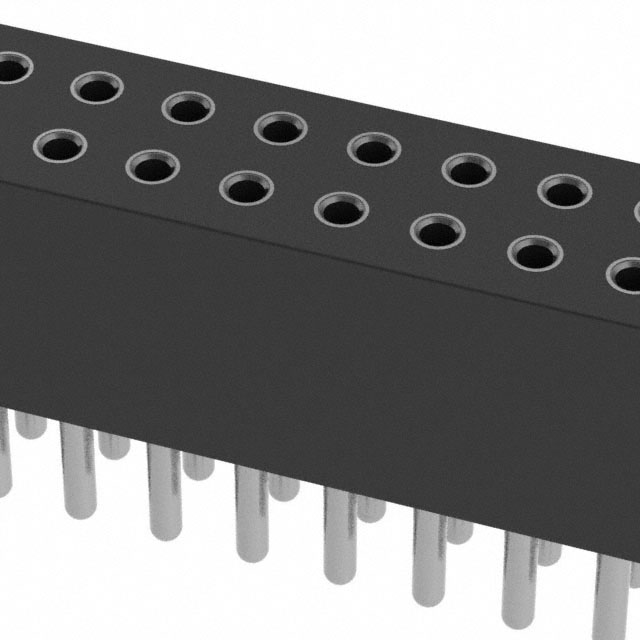

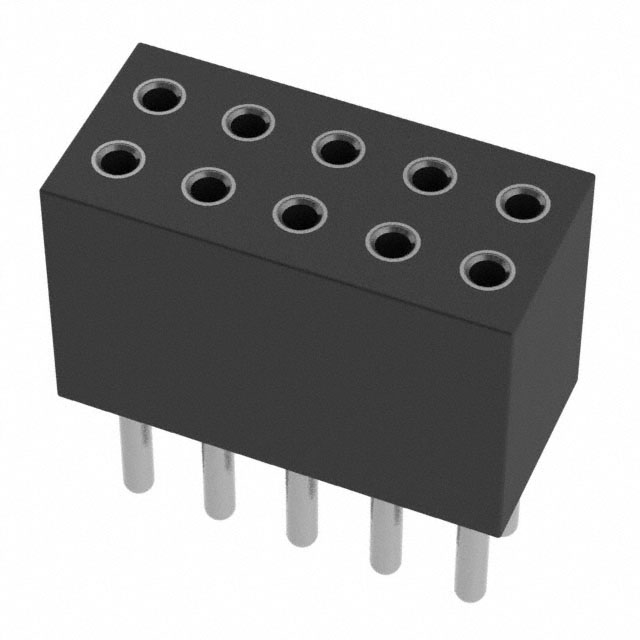

Mill-Max Manufacturing Corp. 853-99-010-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	4.01 mm	0.158 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Through Hole	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	10	2	Tin-Lead			2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-99-040-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	4.01 mm	0.158 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Through Hole	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	40	2	Tin-Lead			2.6 mm	0.102 in
Mill-Max Manufacturing Corp. 853-99-026-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	3.05 mm	0.12 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Right Angle Through Hole	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	26	2	Tin-Lead	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-096-20-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	3.05 mm	0.12 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Right Angle Through Hole	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	96	2	Tin-Lead	0.135 in	3.43 mm
Mill-Max Manufacturing Corp. 853-99-072-30-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	5.25 mm	0.207 in	Solder	UL94 V-0	All	1.27 mm	0.05 in	Push-Pull	0.05 in	1.27 mm	Black	100 çin	2.54 çm	Surface Mount	Female Socket	Tin-Lead	Receptacle	3 A	-55 C	125 °C	72	2	Tin-Lead
