2M1-SP1 Series

Catalog

SWITCH TOGGLE SPDT 5A 125V

Part	Actuator Material	Electrical Life	Switch Function	Voltage Rating - DC	Illumination	Panel Cutout Dimensions [diameter]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Length [x]	Ingress Protection	Circuit	Termination Style	Mounting Type	Bushing Thread	Current Rating (Amps)	Voltage Rating - AC	Features
Carling Technologies 2M1-SP1-T1-B5-M1QE	Brass Chrome Plated	50000 Cycles	On-On	28 V	Non-Illuminated	0.25 in	Standard Round	85 °C	-30 ░C	10.39 mm	IP67 - Dust Tight Waterproof	SPDT	Solder Lug	Panel Mount	1/4-40	5 A	125 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T2-B2-M7RE	Brass Chrome Plated	50000 Cycles	On-On	20 V	Non-Illuminated		Standard Round	85 °C	-30 ░C	5.4 mm		SPDT	PC Pin	Right Angle Through Hole Vertical	Unthreaded	0.4 VA	20 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T1-B2-VS2QE	Brass Chrome Plated	50000 Cycles	On-On	28 V	Non-Illuminated		Standard Round	85 °C	-30 ░C	10.4 mm	IP67 - Dust Tight Waterproof	SPDT	PC Pin	Through Hole	Unthreaded	5 A	125 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T1-B5-M1RE	Brass Chrome Plated	50000 Cycles	On-On	20 V	Non-Illuminated	0.25 in	Standard Round	85 °C	-30 ░C	10.39 mm	IP67 - Dust Tight Waterproof	SPDT	Solder Lug	Panel Mount	1/4-40	0.4 VA	20 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T6-B6-VS5-QE	Brass Chrome Plated	50000 Cycles	On-On	28 V	Non-Illuminated	0.25 in	Flatted	85 °C	-30 ░C	12.1 mm	IP67 - Dust Tight Waterproof	SPDT	PC Pin	Panel Mount	1/4-40	5 A	125 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T1-B4-M6RE	Brass Chrome Plated	50000 Cycles	On-On	20 V	Non-Illuminated		Standard Round	85 °C	-30 ░C	10.4 mm		SPDT	PC Pin	Right Angle Through Hole	Unthreaded	0.4 VA	20 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T1-B1-M2RE	Brass Chrome Plated	50000 Cycles	On-On	20 V	Non-Illuminated	0.25 in	Standard Round	85 °C	-30 ░C	10.4 mm		SPDT	PC Pin	Panel Mount	1/4-40	0.4 VA	20 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-TA-B1-M6RE	Brass Chrome Plated	50000 Cycles	On-On	20 V	Non-Illuminated	0.25 in	Locking Lever	85 °C	-30 ░C			SPDT	PC Pin	Panel Mount Right Angle	1/4-40	0.4 VA	20 V	Epoxy Sealed Terminals
Carling Technologies 2M1-SP1-T1-B7-M1QE	Brass Chrome Plated	50000 Cycles	On-On	28 V	Non-Illuminated	0.25 in	Standard Round	85 °C	-30 ░C	10.39 mm	IP67 - Dust Tight Waterproof	SPDT	Solder Lug	Panel Mount	1/4-40	5 A	125 V	Epoxy Sealed Terminals

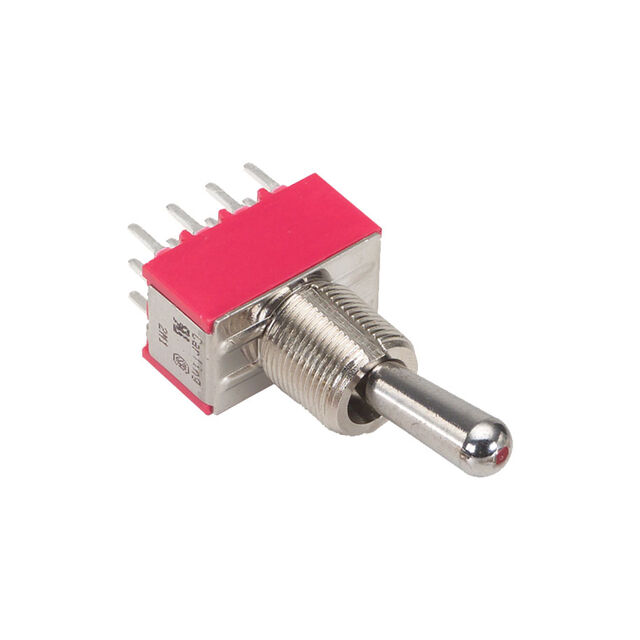

Carling Technologies 2M1-SP1-T2-B3-M2RE	Brass Chrome Plated	50000 Cycles	On-On	20 V	Non-Illuminated	0.25 in	Standard Round	85 °C	-30 ░C	5.4 mm		SPDT	PC Pin	Panel Mount	1/4-40	0.4 VA	20 V	Epoxy Sealed Terminals
