90166 Series
Manufacturer: Preci-Dip
Beta
⌘K

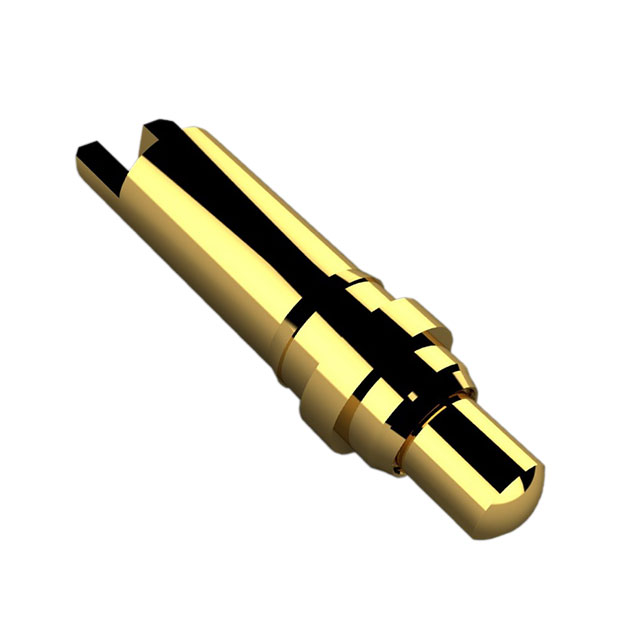

CONTACT SPRING LOADED SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Operating Force - Mid Compression | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Minimum Working Height [z] | Minimum Working Height [z] | Operating Force - Initial | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Contact Finish | Maximum Working Height [Max] | Maximum Working Height | Current Rating (Amps) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | -55 C | 125 °C | 0.25 Ám | 10 Áin | Sleeve & Plunger (Pogo Pins) | Brass Alloy | 112.17 gf | 40000 | 0.042 in | 1.07 mm | 0.193 in | 4.9 mm | 50.99 gf | 1.5 mm | 0.059 in | Circular | Gold | 0.236 in | 6 mm | 3 A | Solder Cup Through Hole |
