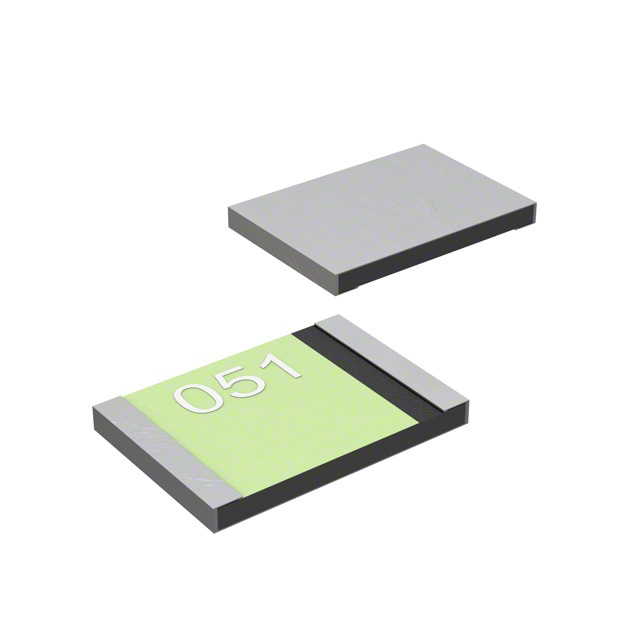

MF-MSMD Series

Catalog

PTC RESET FUSE 6V 1.5A 1812

Part	Approval Agency	Package / Case	Voltage - Max [Max]	Current - Trip (It)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Time to Trip	Resistance - Initial (Ri) (Min) [Min]	Type	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Post Trip (R1) (Max) [Max]	Mounting Type	Current - Hold (Ih) (Max)
Bourns Inc. MF-MSMD150-2	CSA TUV UR	1812 (4532 Metric)	6 V	3 A	0.015 "	0.179 in	4.55 mm	0.39 mm	100 A	500 ms	30 mOhms	Polymeric	1.5 A	0.134 in	3.41 mm	85 °C	-40 C	120 mOhms	Surface Mount
Bourns Inc. MF-MSMD014-2	CSA TUV UR	1812 (4532 Metric)	60 V	340 mA	0.027 in	0.179 in	4.55 mm	0.68 mm	40 A	150 ms	400 mOhms	Polymeric		0.134 in	3.41 mm	85 °C	-40 C	6.5 Ohms	Surface Mount	140 mA
Bourns Inc. MF-MSMD020-2	CSA TUV UR	1812 (4532 Metric)	30 V	400 mA	0.027 in	0.179 in	4.55 mm	0.68 mm	80 A	60 ms	400 mOhms	Polymeric	200 mA	0.134 in	3.41 mm	85 °C	-40 C	6 Ohms	Surface Mount
Bourns Inc. MF-MSMD075-2	CSA TUV UR	1812 (4532 Metric)	13.2 V	1.5 A	0.02 in	0.179 in	4.55 mm	0.5 mm	100 A	0.2 s	0.11 Ohms	Polymeric	750 mA	0.134 in	3.41 mm	85 °C	-40 C	450 mOhms	Surface Mount
