638-W26 Series
Manufacturer: EDAC Inc.
Beta
⌘K

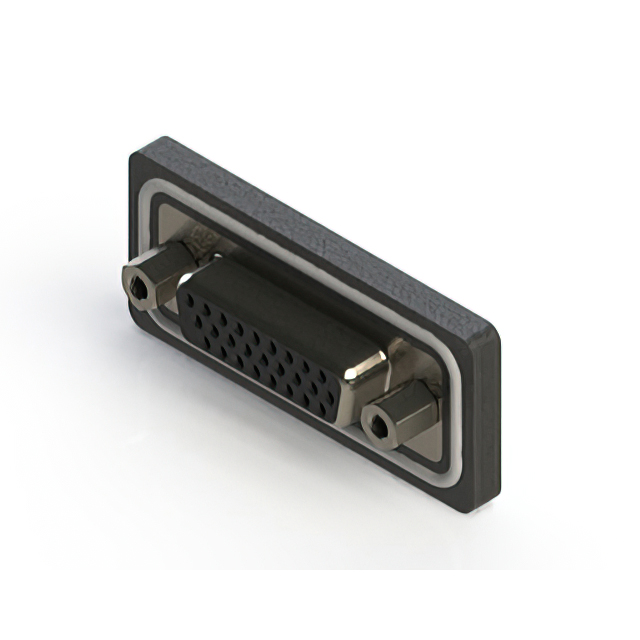

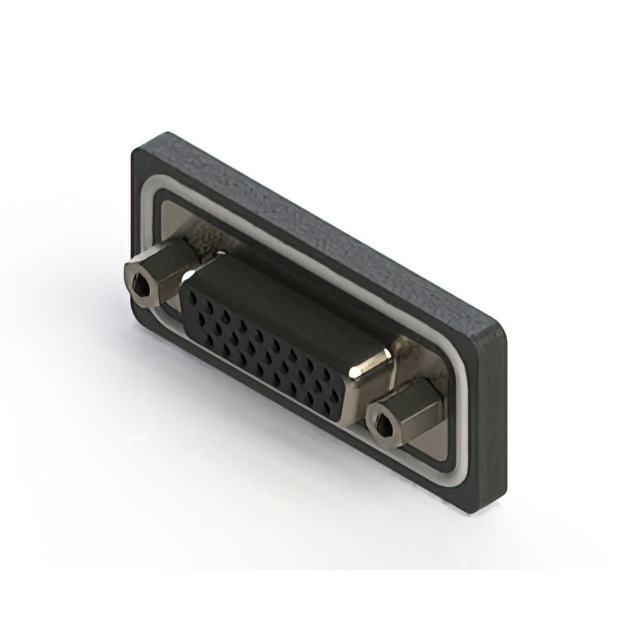

D SUB CONNECTOR, HIGH DENSITY, RECEPTACLE, 638W SERIES, 26 CONTACTS, DA, SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Dielectric Material | Contact Material | Number of Rows [custom] | Connector Type | Flange Feature | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Finish Thickness | Current Rating (Amps) | Termination | Contact Type | Shell Material, Finish | Ingress Protection | Number of Positions | Material Flammability Rating | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 3 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | D-Sub High Density | 2 | DA A | Flash | 3 A | Solder | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 26 | UL94 V-0 | Through Hole | Gold | ||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 3 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | D-Sub High Density | 2 | DA A | Flash | 3 A | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 26 | UL94 V-0 | Free Hanging (In-Line) | Gold | |||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 3 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | D-Sub High Density | 2 | DA A | 3 A | Solder | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 26 | UL94 V-0 | Through Hole | Gold | 0.38 µm | 15 µin | |
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 3 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | D-Sub High Density | 2 | DA A | 3 A | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 26 | UL94 V-0 | Free Hanging (In-Line) | Gold | 0.38 µm | 15 µin | ||
 EDAC Inc. | 85 °C | -25 °C | Black | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | 3 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | D-Sub High Density | 2 | DA A | 3 A | Solder | Signal | Nickel Plated Steel | IP67 - Dust Tight Waterproof | 26 | UL94 V-0 | Through Hole | Gold | 0.76 Ám | 30 Áin |
